Introduction
An application can pass every external scan and still hide a critical flaw in its source code, its API logic, or the way permissions are configured behind the login screen. That's the gap white box penetration testing was built to close.
Many organizations discover security issues only after an external-only assessment misses something buried deeper: a business logic flaw in a payment workflow, an overly permissive cloud role, or a hard-coded secret sitting in a config file.
Attackers don't need to guess at your architecture if you've left the door open from the inside.
This guide breaks down what white box penetration testing involves: how it differs from black box and gray box approaches, what happens during a real engagement, what these tests typically uncover, and how to prepare for one without disrupting daily operations.
By the end, you'll know whether this testing model fits your organization's risk profile—and what to do with the results once you have them.
Key Takeaways
- White box testing grants internal access to source code, architecture, and credentials so teams can find risks external-only tests miss
- Greater depth and speed still need attacker-style validation and real remediation—not only a findings list
- Choose white, black, gray, or combined testing based on your goal: code assurance, compliance support, or realistic attack simulation
- Treat the final report as a remediation roadmap, not a checklist to file away
What Is White Box Penetration Testing?
White box penetration testing, also called clear-box, crystal-box, or full-knowledge testing, is an authorized security assessment where testers receive extensive internal information about the target before they start. Instead of guessing at your architecture from the outside, they work from the inside out.
What Testers Actually Receive
A typical white box engagement might include:
- Source code and repository access
- Architecture diagrams and network maps
- API documentation and specifications
- Cloud configuration details, including IAM roles, storage policies, and network rules
- Test credentials across different user roles
- Security control documentation and technical runbooks
This level of access lets testers combine two things: deep knowledge of how a system is supposed to work, and controlled exploitation to see how it behaves under attack. The goal is to confirm each weakness is exploitable, gauge the business impact, and deliver a working fix.
How It Differs from Code Review and Vulnerability Scanning
White box testing gets confused with a few adjacent activities. It isn't the same thing.
Source-code review (SAST) can flag risky code patterns, but it can't always show how those patterns behave once the application is live. The OWASP Web Security Testing Guide draws this distinction: source-code analysis identifies what the code is doing, or supposed to do. Penetration testing acts like an attacker to find and exploit real vulnerabilities in a running environment.
Vulnerability scanning provides broad, automated detection, but scanners routinely miss chained attacks, authorization logic, and business-logic flaws that only surface when a human tester connects the dots.

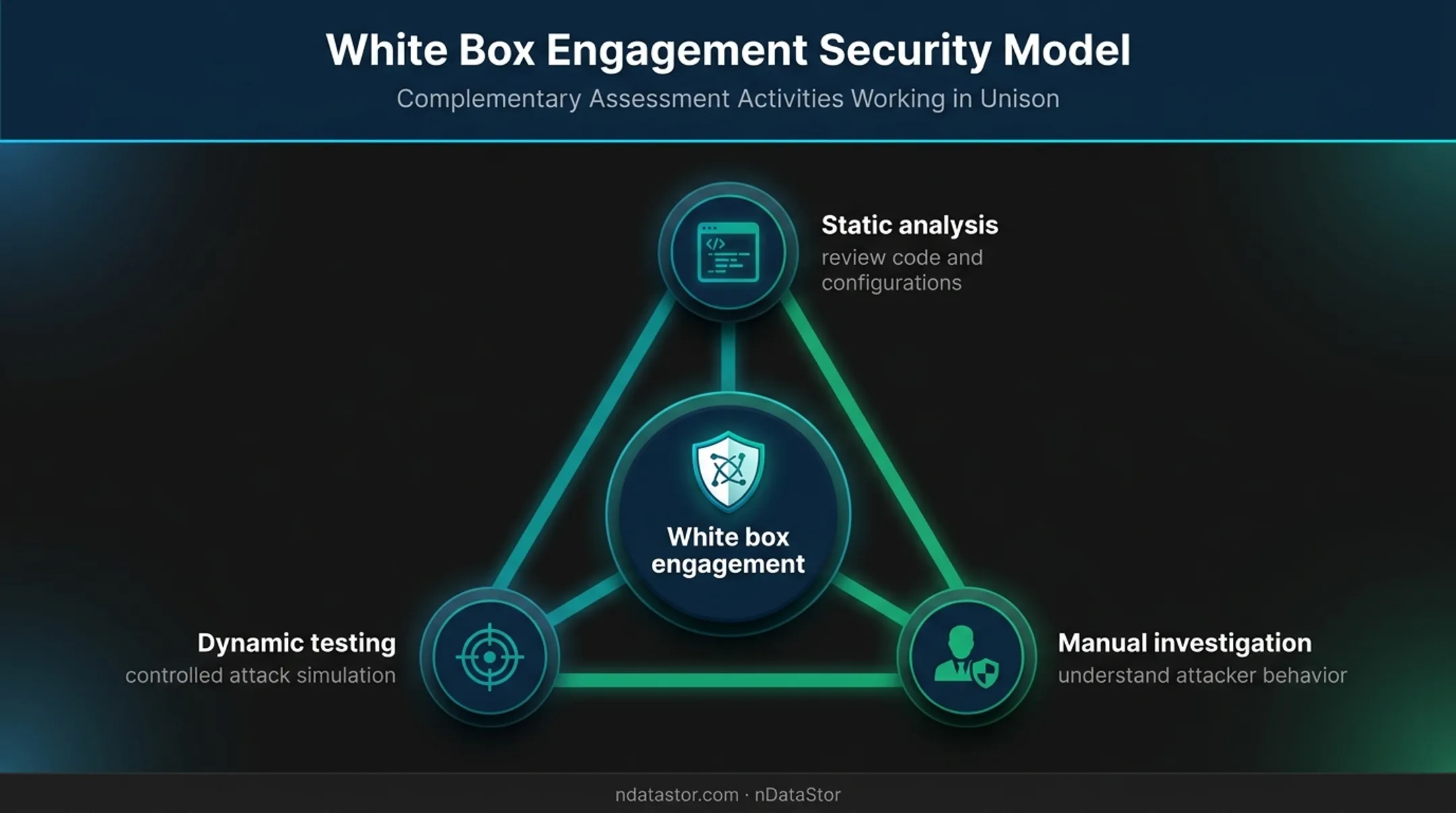

A properly run white box engagement blends all three: static analysis of the code, dynamic testing against a live or staging environment, and manual investigation by someone who understands attacker behavior. That mix commonly surfaces:
- Insecure access control
- Unsafe input handling
- Exposed secrets
- Weak session handling
- Vulnerable dependencies
- Cloud misconfigurations
- Flawed business workflows
None of this works without proper authorization. Every white box test needs a defined scope, signed authorization, and rules that protect production systems and sensitive data throughout the engagement.

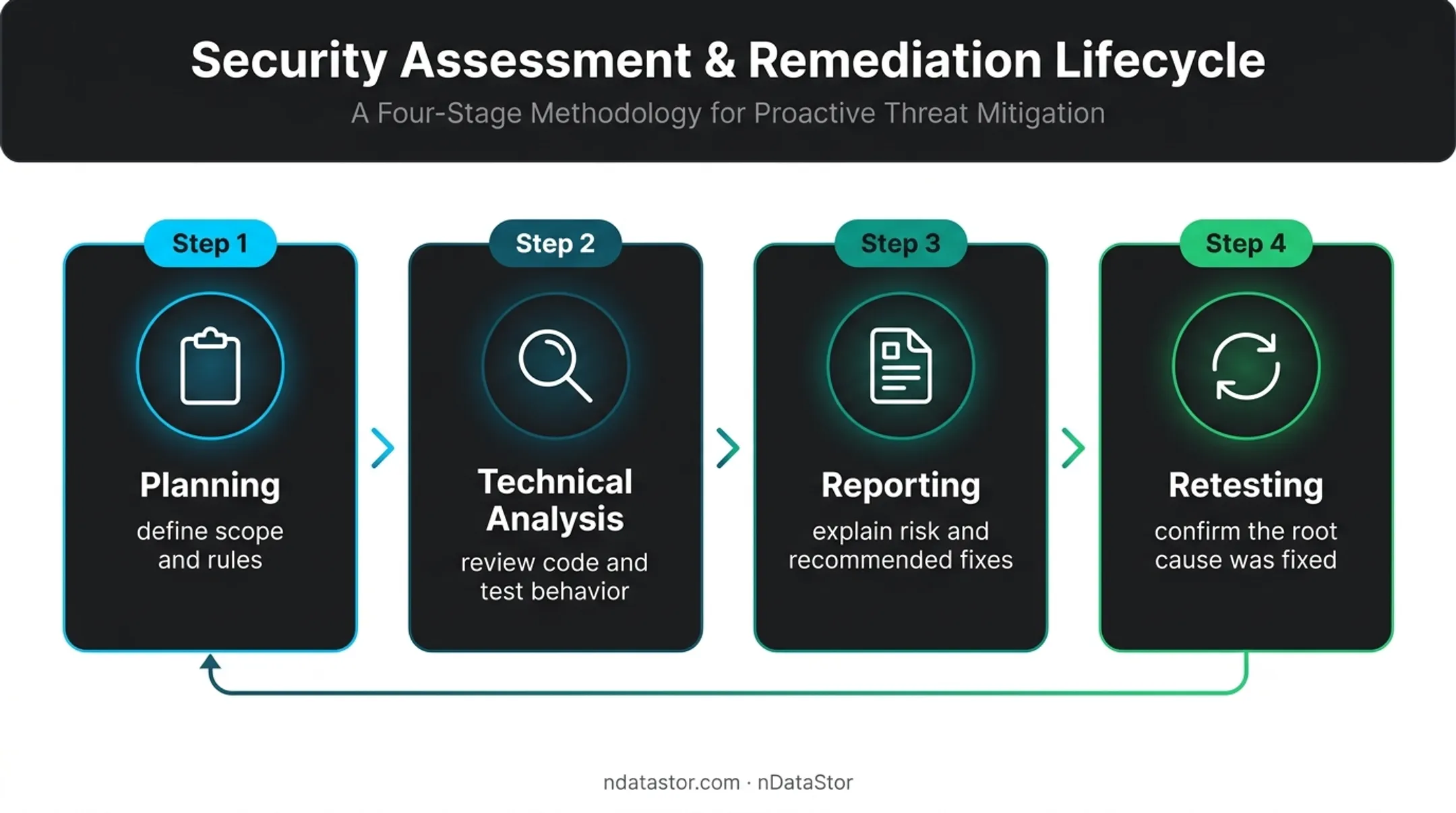

How Does a White Box Penetration Test Work?
Every engagement looks a little different depending on the target, but a professional white box test generally follows the same backbone: defined objectives, an agreed scope, formal authorization, named contacts, a test window, and clear rules of engagement.
According to NIST SP 800-115, the planning phase should document goals, scope, roles, limitations, assumptions, timeline, and deliverables before any testing begins, along with which activities are allowed and which are strictly off-limits.
Planning and Information Sharing
During planning, testers and the client work together to:
- Identify systems, applications, APIs, cloud resources, and network segments in scope
- Map user roles, critical data flows, and high-value business processes
- Decide which credentials, code branches, configurations, and documentation will be shared
- Agree on how sensitive materials, like source code and test credentials, will be protected
From there, testers build an attack-surface and trust-boundary map, checking whether the documented environment actually matches what's deployed. Undocumented endpoints, orphaned integrations, and stale permissions show up more often than most teams expect.
Static and Dynamic Analysis
Next comes the technical work. Static analysis and manual review dig into code, configurations, dependencies, authentication, cryptography, secrets management, and data-processing paths.
This kind of review can expose issues that automated scans miss entirely. The National Vulnerability Database recorded a case in OpenMRS versions before 2.24.0 involving insecure object deserialization, a flaw that allowed an unauthenticated user to execute arbitrary commands through a crafted XML request. That's exactly the type of code-level weakness a thorough manual review is designed to catch.
Dynamic testing follows, using controlled attack simulation against a test environment to validate:
- Authentication and authorization boundaries
- Input handling and session behavior
- API interactions and privilege escalation paths
- Business-logic workflows
Testers then correlate findings across code, infrastructure, identities, and runtime behavior. This step matters more than it sounds. It's what separates a report full of real, exploitable risks from one padded with theoretical or duplicate issues.
Reporting and Retesting
A solid report covers:
- Executive summary highlighting business risk
- Technical evidence and affected assets
- Severity rationale and business impact
- Reproduction steps for each finding
- Recommended fixes with clear ownership
Retesting closes the loop. It confirms whether a fix addressed the root cause, not just the symptom, and checks that the fix didn't introduce a new problem elsewhere.
What Can White Box Testing Find, and When Is It Useful?
Findings from a white box engagement tend to fall into three layers.
Application and API issues:
- Broken access control
- Authentication and session weaknesses
- Injection risks
- Insecure deserialization
- Unsafe file handling
- Exposed debug functionality
Infrastructure and cloud issues:
- Excessive permissions
- Exposed management interfaces
- Weak network segmentation
- Public storage buckets
- Leaked credentials
Supply-chain and operational issues:
- Vulnerable dependencies
- Insecure build pipelines
- Hard-coded secrets
- Incomplete logging
- Weak secrets rotation

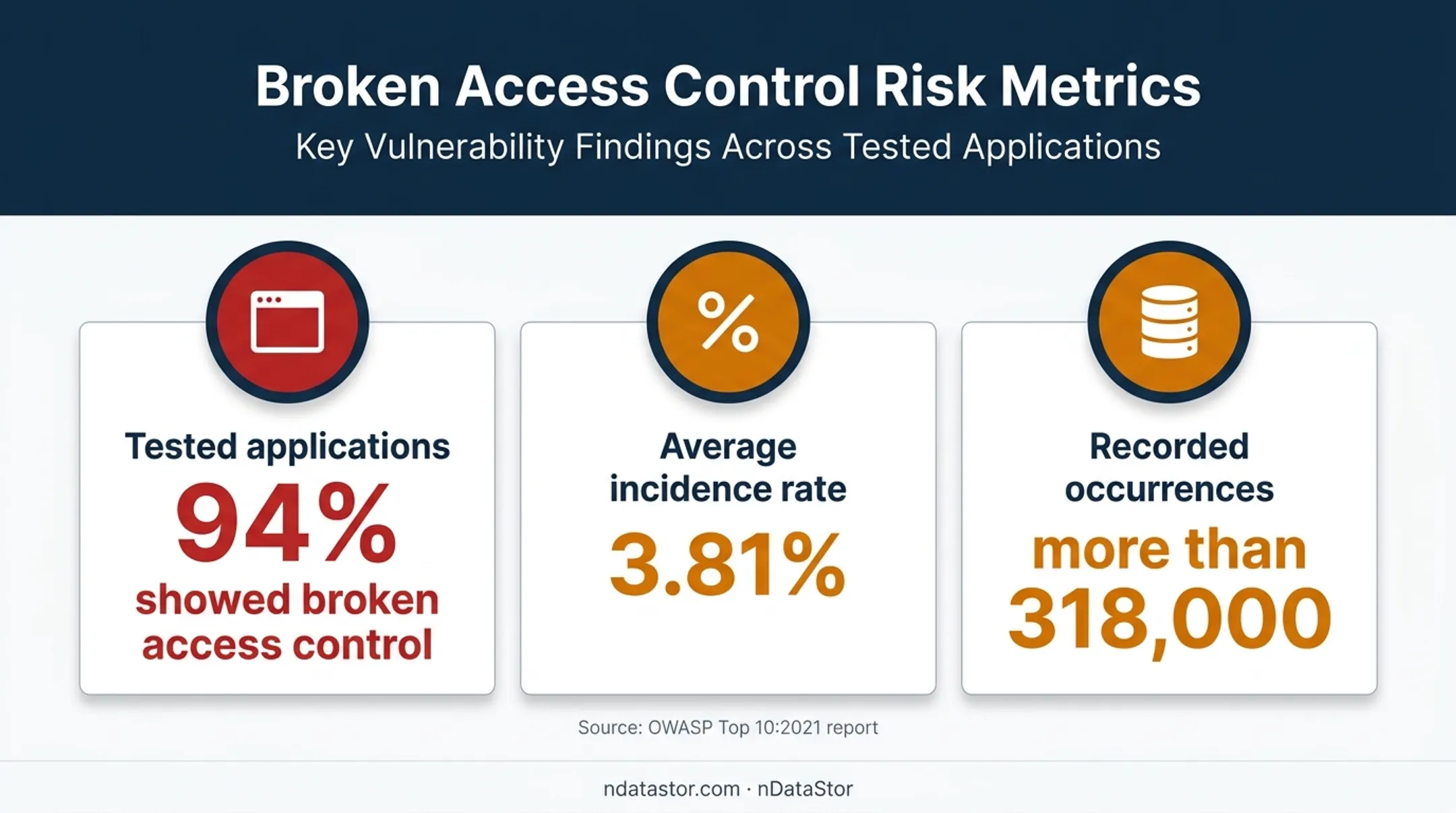

Broken access control isn't a minor entry on that list. OWASP's Top 10:2021 report found that 94% of tested applications showed some form of broken access control. The same dataset logged an average incidence rate of 3.81% and more than 318,000 occurrences.
It's one of the most common, and most exploitable, categories a white box test will surface.
Why Business Logic Deserves Special Attention
Automated tools are good at finding known patterns. They're bad at understanding intent. A workflow can pass every technical check and still be manipulated.
Think of an approval process that can be bypassed with the wrong sequence of steps, or an account-recovery flow that trusts the wrong signal. Catching these requires a human tester who understands how the business process is supposed to work, not just how the code is structured.
When White Box Testing Makes Sense
This model fits particularly well for:
- Pre-release testing of a new application, major feature, API, or cloud migration
- Systems handling sensitive personal, health, financial, or legal data
- Validating security controls after an incident or major remediation project
- Supporting compliance evidence, though a penetration test alone doesn't establish compliance
That last point matters. A test report documents what was found and fixed. It's supporting evidence, not a compliance certificate on its own.
White box testing isn't always the right fit. Black box testing better simulates a real external attacker with zero inside knowledge. Gray box testing models an authenticated user with limited access. Red teaming looks at people, process, and technology together, beyond just technical vulnerabilities.
Choose based on risk, objective, available documentation, and the level of assurance you actually need, not by defaulting to whichever sounds most thorough.
Limitations, Preparation, and Safety Considerations
White box testing isn't perfect. Common constraints include:
- Incomplete or outdated documentation
- Review noise in large codebases
- False positives from automated tools
- Tester blind spots that mirror the builders' assumptions
Operational risk sits alongside those limits. Even well-intended tests on production can affect availability, so controls matter as much as coverage.

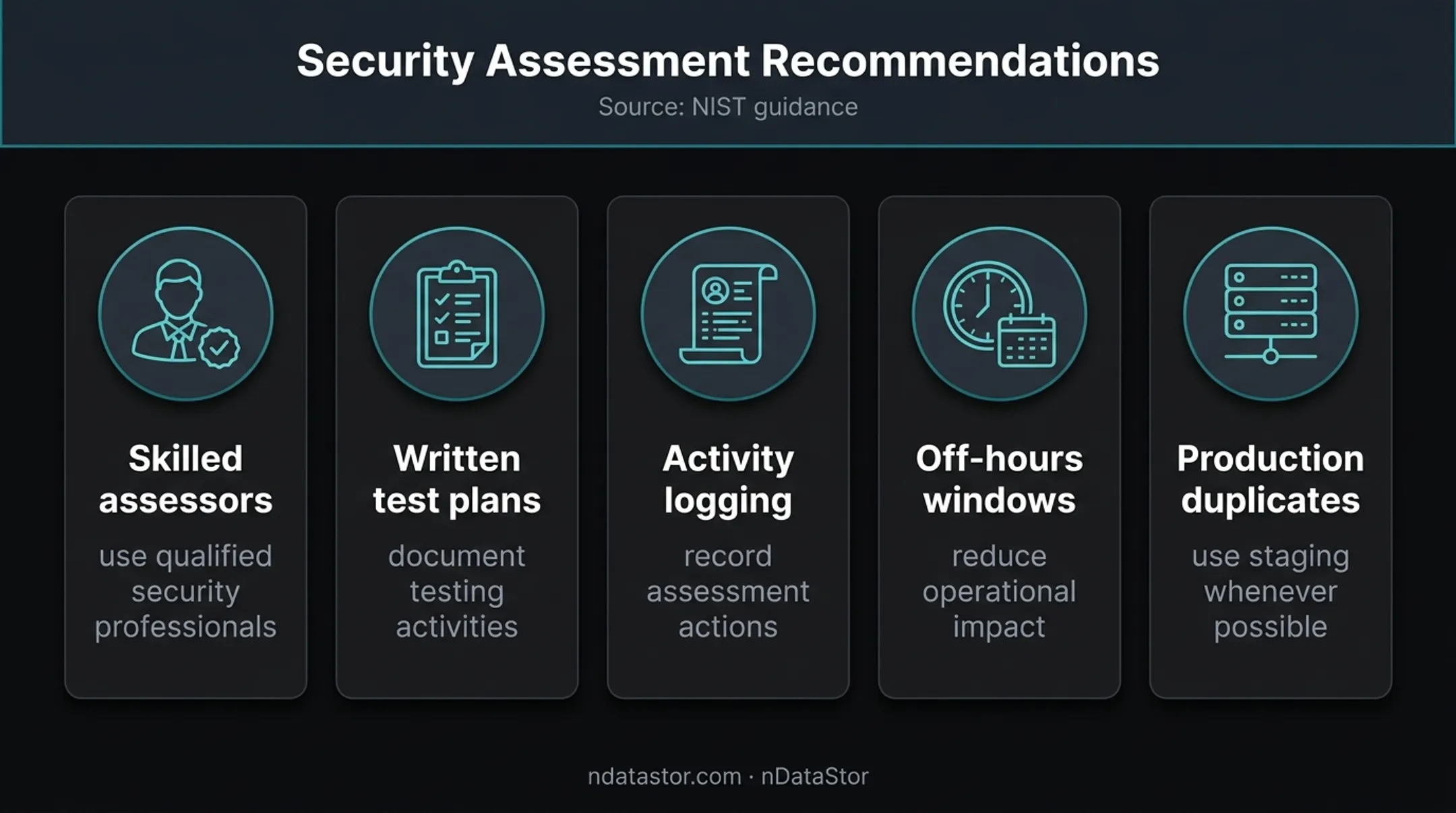

NIST guidance points teams toward skilled assessors, written test plans, activity logging, off-hours windows, and staging or other production duplicates whenever possible.
A Basic Preparation Checklist
Before testing starts, confirm:
- Document and agree on scope and in-scope assets
- Define clear test objectives
- Set a safe test environment or change-freeze window
- Provision access and credentials securely
- Establish sensitive-data handling rules
- Identify internal stakeholders and emergency contacts
Documented stop conditions matter here too. If something goes wrong mid-test, the team needs a clear, pre-agreed process for pausing and escalating, not a scramble to figure out who to call.
The strongest white box engagements stay independent enough to challenge internal assumptions, yet close enough to the business workflow to spot high-impact issues a pure checklist pass will miss. Pair that judgment with the prep steps above—especially stop conditions and a non-production target—and you reduce both missed findings and avoidable downtime.
Choosing Help and Acting on Results
Picking the right testing partner matters as much as picking the right testing model. Look for:
- Relevant experience with your application, cloud platform, network type, and industry
- Qualified, experienced personnel, not just certifications on a resume
- A documented, repeatable testing methodology
- Secure handling procedures for source code and credentials
- Clear rules of engagement before testing starts
- Actionable reporting, retesting, and transparent communication throughout
Before signing off on an engagement, ask a few direct questions:
- What exactly will be tested?
- What information do you need from us?
- How will you control risk to production systems?
- How will findings be prioritized?
- Is remediation support included, or just the report?
For small and mid-sized organizations across Northern California, organizing scope, stakeholders, and documentation can be its own project before testing begins. nDataStor's proactive cybersecurity and strategic IT consulting help close that gap.
Every client works with a dedicated vCIO who maps risk, coordinates stakeholders, and prepares the assessment so findings are useful. Broader support spanning HIPAA, PCI-DSS, and CMMC also shows where a penetration test fits in the overall risk program.
Whatever you find, don't leave it in a PDF. Feed findings into a broader program:
- Patching and secure development practices
- Identity and access management
- Backup protection and ongoing monitoring
- Incident response planning
- Periodic reassessment
A test is a snapshot. The program is what keeps you protected between snapshots.
Conclusion
White box penetration testing works because it pairs deep internal knowledge of how a system is built with controlled, attacker-style validation of how it actually behaves. That combination surfaces code-level flaws, cloud misconfigurations, and business-logic weaknesses that other testing models often miss.
That value only holds up when the fundamentals are right:
- Scope matches the systems and workflows that actually matter
- Analysis stays independent of the teams that built them
- Testing is run safely, with clear rules of engagement
- Findings get fixed—not just filed
A thorough report that sits unread doesn't protect anyone.
Start by identifying your organization's highest-risk application, network, cloud environment, or business workflow. Then decide whether a white box, black box, grey box, or combined assessment gives you the assurance you need—not just the one that sounds most rigorous.
If you want help scoping or running that work, nDataStor provides penetration testing and security assessments for small and mid-sized businesses.
Frequently Asked Questions
What is a white box pen test?
A white box pen test is an authorized security assessment where testers receive extensive internal information, such as source code, architecture diagrams, credentials, or configurations, to identify and validate deeper security weaknesses.
What is the purpose of white box testing?
The purpose is thorough security coverage: uncovering code-level and business-logic flaws, confirming which ones are actually exploitable, and delivering remediation guidance before an attacker finds the same gaps.
Who performs white box testing?
Trained penetration testers, application-security specialists, or cloud and network security professionals typically perform this testing. A skilled internal security team can also do it, provided the engagement is authorized and reviewed independently.
What is the difference between a black box pen test and a white box pen test?
Black box testing gives testers little to no internal information, simulating an outside attacker with zero prior knowledge. White box testing provides extensive internal access, allowing for deeper, more targeted analysis of code and architecture.
What is the main difference between white box and gray box testing?
Gray box testers work with partial information, often representing an authenticated user with limited access. White box testers receive substantially more, including internal documentation, source code, architecture details, and credentials.
What are the different types of white box testing?
Common types include application and API testing, internal network testing, cloud and infrastructure testing, and mobile testing. Most combine static analysis, dynamic testing, and manual validation for full coverage.
