Network penetration testing exists to find those gaps before someone with bad intentions does. This guide walks through how an authorized test actually works, how internal and external testing differ, what the seven-stage process looks like, and how organizations should respond once findings land on their desk.
One boundary matters more than any technique: legitimate testing happens only with written permission, a defined scope, and controlled methods designed to avoid unnecessary disruption. Everything else in this guide builds on that foundation.
Key Takeaways
- Penetration testing is a controlled simulation of attacker behavior, not a scan or a guess
- External testing checks internet-facing exposure; internal testing checks what happens after a breach
- Black-box, gray-box, and white-box describe tester knowledge levels, not different network zones
- A test's value comes from remediation, retesting, and follow-up monitoring, not the findings alone
- PCI-DSS, HIPAA, and CMMC frameworks often require or strongly recommend regular testing
Network Penetration Testing: Purpose, Scope, and Testing Perspectives
Network penetration testing is an authorized, hands-on assessment of infrastructure: firewalls, routers, switches, servers, remote-access systems, endpoints, wireless networks, and exposed services. A qualified tester doesn't just look for weaknesses. They try to use them, safely, within agreed limits.
Vulnerability Scanning vs. Penetration Testing
These two terms get used interchangeably, and that's a mistake. According to NIST's technical guide to information security testing, vulnerability scanning matches host operating systems and software against known-vulnerability databases to flag missing patches and misconfigurations. It's automated and broad.
Penetration testing goes further. A skilled tester checks whether a flagged weakness is truly exploitable, chains smaller issues into a realistic attack path, and filters out the false positives scanners routinely produce.
nDataStor testers draw the same line: automated tools surface known weaknesses; ethical hackers verify which ones create real business impact.
Main objectives of a network penetration test:
- Identify realistic paths to unauthorized access or sensitive data
- Validate whether firewalls, segmentation, authentication, and monitoring actually work
- Give technical and business stakeholders evidence-based remediation priorities

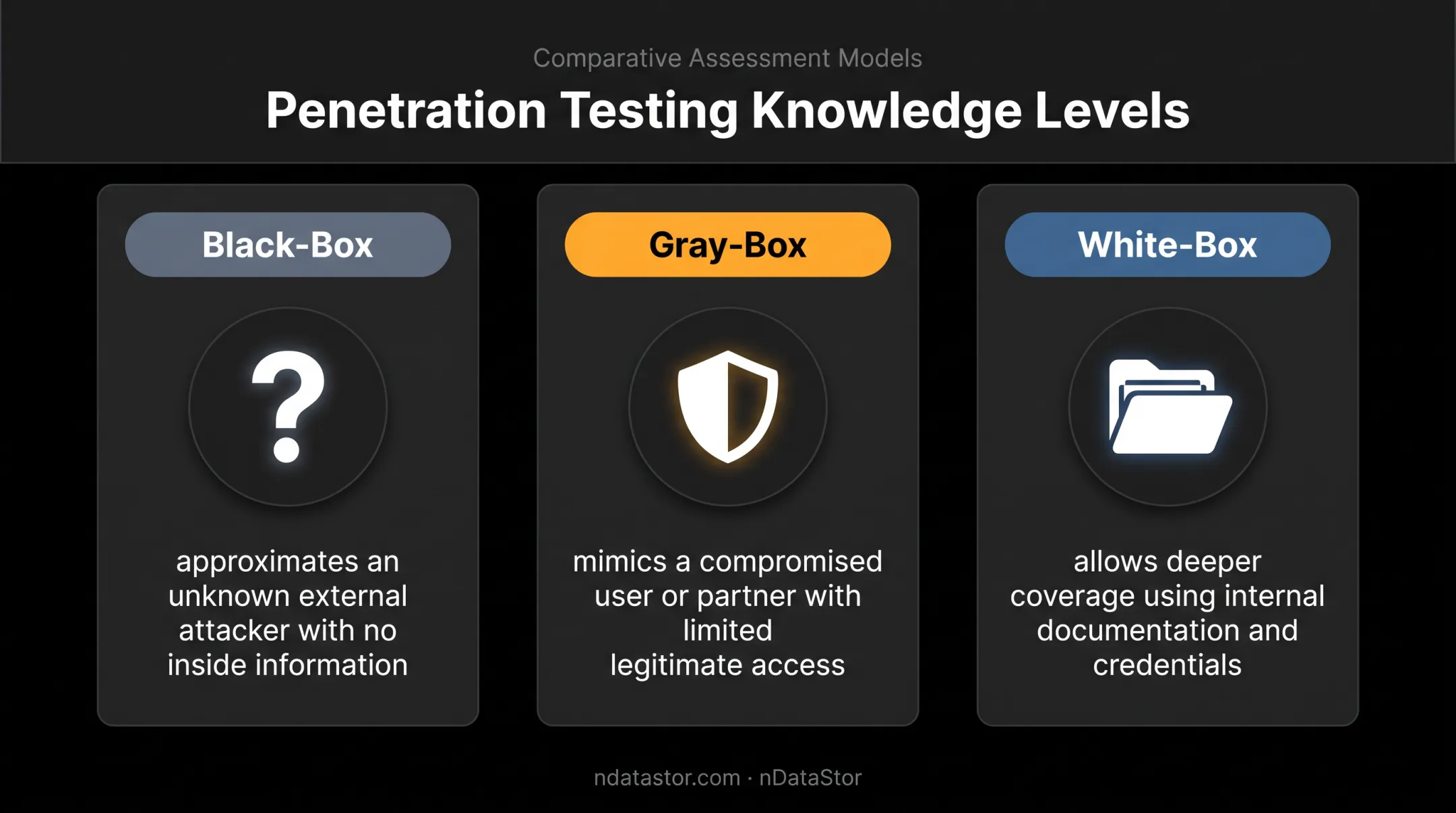

Black-Box, Gray-Box, and White-Box Testing
These labels describe how much the tester knows going in, not where they're testing from. NIST frames white-box testing as relying on internal knowledge and direct system access, black-box testing as working without that knowledge, and gray-box as a blend of both.
- Black-box approximates an unknown external attacker with no inside information
- Gray-box mimics a compromised user or partner with limited legitimate access
- White-box allows deeper coverage since testers start with internal documentation and credentials
Common risk areas worth flagging—without turning this into a how-to—include:
- Exposed management interfaces
- Weak remote access
- Outdated services
- Flat network architecture
- Misconfigured VPN or cloud connections
Internal vs External Network Penetration Testing
External testing examines everything reachable from the public internet: IP ranges, remote-access gateways, perimeter devices, DNS records, and internet-facing servers.
Internal testing simulates what happens after that perimeter is already breached—through a compromised device, stolen credentials, or a malicious insider.
| Factor | External Testing | Internal Testing |
|---|---|---|
| Scope | Public IPs, VPNs, perimeter devices | Internal network, endpoints, servers |
| Threat model | Unknown outside attacker | Insider or post-breach attacker |
| Key question | Can someone get in? | What happens once they're in? |
| Typical findings | Exposed services, weak edge configs | Lateral movement, privilege escalation |
According to PCI SSC's Penetration Testing Guidance, organizations handling cardholder data should test at least annually and after any significant infrastructure change. NIST notes that when both types run, external testing usually comes first—internal testing sits behind existing defenses and typically uncovers more findings.
That sequencing is why most organizations benefit from both. External testing shows where an attacker could get a foothold. Internal testing shows what that foothold is actually worth.
For small and mid-sized businesses, scope often centers on:
- Remote access and VPN paths used by distributed teams
- File servers and identity systems that hold client records
- Payment environments subject to PCI-DSS
- Healthcare systems governed by HIPAA
- Legal case-management platforms with privileged data
Application testing, wireless assessments, and social engineering are usually separate engagements. nDataStor offers these as optional add-ons—such as web application and cloud security testing or wireless and IoT assessments—so you can match scope to risk without bundling work you do not need.

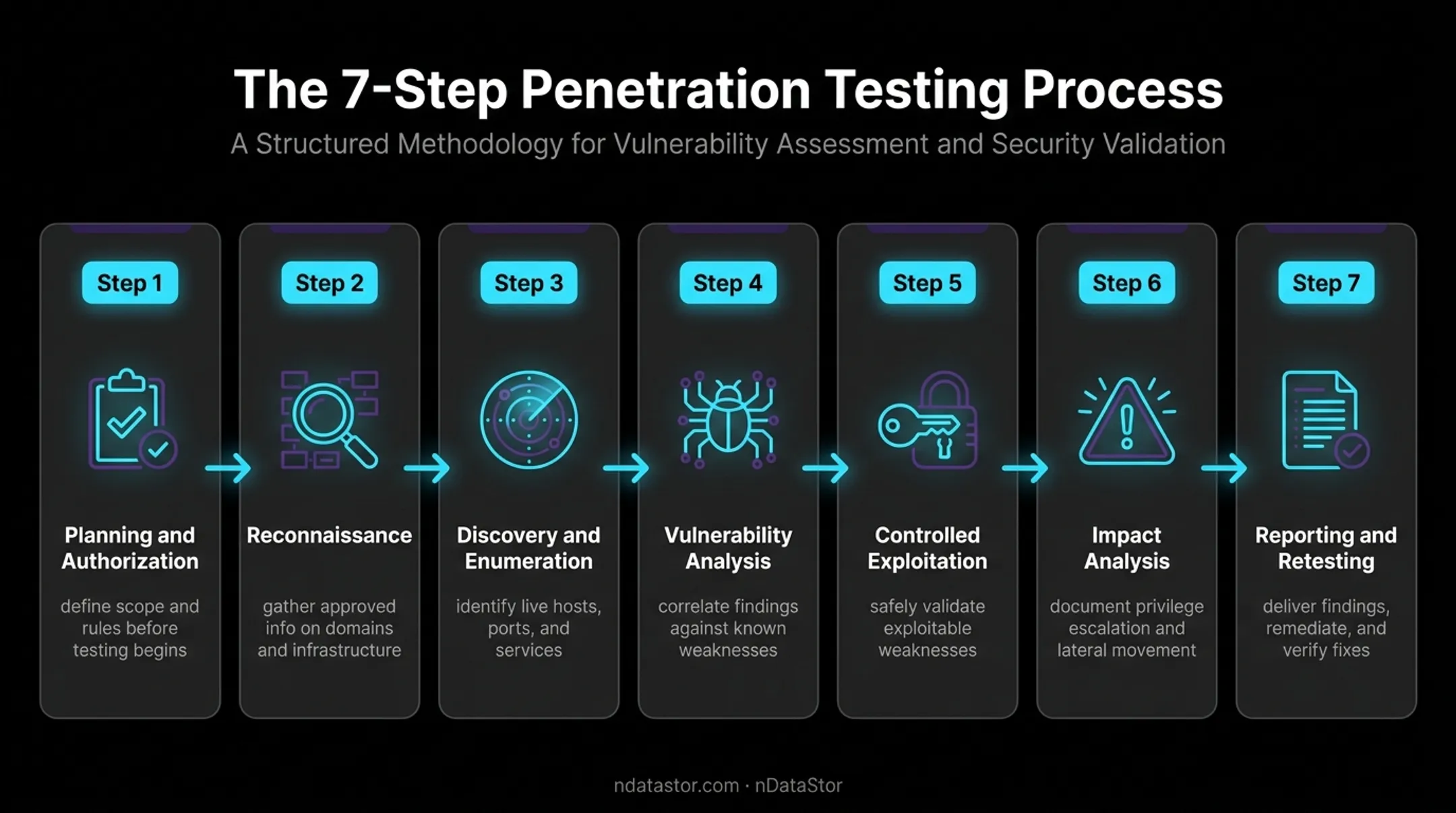

The Network Penetration Testing Process: 7 Stages
A network penetration test follows a defined sequence. Skipping steps, especially planning and authorization, is how testing goes wrong.
- Planning and authorization – Define business objectives, in-scope assets, IP ranges, test windows, permitted and prohibited techniques, emergency contacts, and success criteria before anything else begins.
- Reconnaissance – Gather approved information about domains, infrastructure, vendors, and exposed services, keeping passive research separate from active testing.
- Discovery and enumeration – Identify live hosts, open ports, running services, and trust relationships using approved scanning methods.
- Vulnerability analysis – Correlate discovered technologies against known weaknesses, outdated software, and misconfigurations. Manual review here reduces false positives significantly.
- Controlled exploitation and validation – Safely demonstrate whether a weakness can be used, stopping short of destructive actions or unauthorized data access.
- Impact analysis and attack-path assessment – Document what real access could enable: privilege escalation, lateral movement, or exposure of sensitive data.
- Reporting, remediation, and retesting – Deliver evidence-based findings, agree on fixes, verify them, and record any residual risk.
Test activities should always be coordinated with system owners and monitored throughout. The goal is realistic testing, not an accidental outage or data loss event.
nDataStor's Internal & External Attack Simulations follow this same structure, replicating real attacker behavior while testing how your team responds.
Preparing for a Safe and Useful Penetration Test
Preparation determines whether a test produces useful findings or just noise. Before testing begins, organizations should have ready:
- An asset inventory and current network diagrams
- A list of critical systems and data classifications
- Known system limitations and upcoming maintenance windows
- Validated backups and relevant compliance requirements (HIPAA, PCI-DSS, CMMC)
Choosing a provider matters as much as the methodology. Look for:
- Relevant network-testing experience and qualified personnel
- Clear rules of engagement and secure evidence handling
- Remediation support, not just a report and a handshake
Exclusions need to be explicit too:
- Production systems that can't tolerate intrusive testing
- Third-party assets that require separate approval
- Any denial-of-service or similar high-impact restrictions
PTES guidance calls for a signed statement of work covering scope, exclusions, and handling rules before testing starts.
Notify essential stakeholders, but don't broadcast the test widely. Security and operations teams need to tell real incidents from authorized testing; over-notifying undercuts realistic detection and response.
Understanding Findings, Reporting, and Remediation
A useful report does more than list vulnerabilities. It should cover:
- Executive summary, scope, methodology, and timeline
- Affected assets, evidence, and severity rationale
- Business impact and documented attack paths
- Clear, owner-ready remediation guidance
Prioritize findings using:
- Exploitability and internet exposure
- Privilege level gained and data or operations affected
- Likelihood of chaining multiple weaknesses together
- Existing compensating controls
- Regulatory or contractual obligations

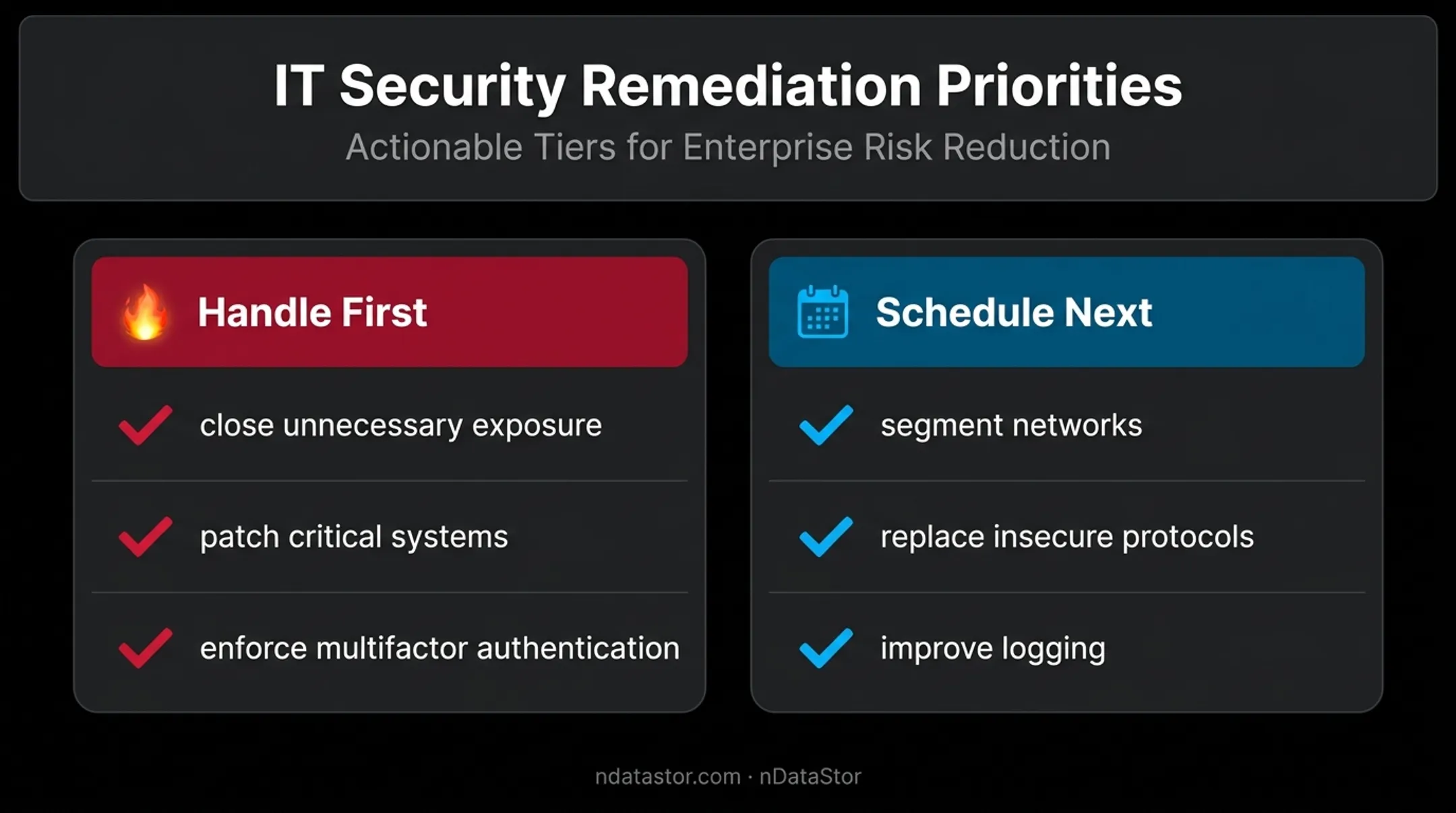

Not every finding needs the same urgency.
Handle first: closing unnecessary exposure, patching critical systems, and enforcing multifactor authentication.
Schedule next: segmenting networks, replacing insecure protocols, and improving logging—still with a deadline and an owner.
Remediation without follow-through is common. Verizon's 2025 DBIR SMB Snapshot found that only 54% of edge-device vulnerabilities were fully remediated within the year, with a median remediation time of 32 days.
That gap is why retesting matters. It confirms a fix worked, catches incomplete patches, and updates the risk picture instead of assuming the issue is closed.
Work between assessments matters as much as the test itself. Managed IT and security support—such as nDataStor’s 24/7 monitoring, ransomware defense, and help with HIPAA, PCI-DSS, and CMMC—keeps fixes in place and flags drift before the next scheduled test.
What a Network Penetration Test Cannot Do
A penetration test is a snapshot, not a guarantee. NIST is direct about this: an assessment reflects security at one specific point in time. It can't promise that every vulnerability, future attack, insider action, or zero-day will surface during that window.
A pen test does not replace:
- Patch management and secure configuration
- Identity and access management
- Endpoint protection and backups
- Employee security awareness training
- Incident response planning
- Continuous monitoring
Results also depend heavily on scope, the credentials provided, test duration, and what changed in the environment right after testing wrapped up. A test conducted in March says little about a network reconfigured in June.
Periodic testing works best when paired with ongoing vigilance. Continuous IT monitoring alone has been shown to help prevent roughly 80% of system failures and outages before they become incidents, according to nDataStor's internal client data.
Combine that with vulnerability management, recurring risk reviews, and incident-response exercises, and a single test becomes part of an actual security program instead of a one-time checkbox.
Frequently Asked Questions
What is network penetration testing?
It's an authorized, simulated attack against network infrastructure conducted by security professionals. The goal is to validate whether existing controls actually work and identify exploitable weaknesses before real attackers do.
What are the 7 stages of penetration testing?
Planning and authorization, reconnaissance, discovery and enumeration, vulnerability analysis, controlled exploitation, impact analysis, and reporting with remediation and retesting. Each stage builds on the last.
What are the three main types of penetration testing?
Black-box, gray-box, and white-box testing describe how much information or access the tester starts with, ranging from none to full internal knowledge. They're not different network locations.
How difficult is pen testing?
Professional pen testing demands networking, systems, cloud, identity, security, and reporting expertise all at once. Difficulty scales with the complexity of the environment and how much is in scope.
Is pen testing illegal?
Authorized testing with written permission and a defined scope is a legitimate, standard security practice. Accessing or testing systems without explicit authorization can violate federal law and cause real harm.
What does a network penetration tester do?
A tester plans and scopes the engagement, assesses network exposure, safely validates weaknesses, documents business impact, and delivers remediation and retesting recommendations. The work is methodical and evidence-based.
