Introduction
Most organizations struggle to spot network vulnerabilities, access weaknesses, and misconfigurations before an incident or audit forces the issue. A network security assessment is a structured review of your network, devices, configurations, users, and connected services. The goal: find security risks before someone else does.
This guide is for small and medium-sized businesses, IT leaders, and regulated organizations that need real visibility into vulnerabilities, access gaps, and business impact—not a passing grade on a checklist.
Many teams treat an "assessment" as a single scan. An effective one includes scoping, testing, risk analysis, remediation, and follow-up monitoring. Skip any of those steps and you get a report full of alerts with no clear path forward.
We'll cover each step of the process, what shapes your results, and when outside help makes sense.
Key Takeaways
- Start with clear objectives and a full inventory of on-prem, cloud, remote, wireless, and third-party assets
- Scan to find weaknesses; pen-test to confirm what attackers can actually exploit
- Rank findings by business impact and exposure, not technical severity alone
- Remediate, retest, and monitor continuously—networks, vendors, and threats keep changing
What Is a Network Security Assessment?
A network security assessment is a structured evaluation of your network infrastructure and related security controls. It surfaces vulnerabilities, misconfigurations, unauthorized access paths, and gaps in how you prevent, detect, and respond to threats.
In plain terms, the goal is to map what's connected to your network, identify what could be exploited, gauge the likely impact, and build a practical plan to reduce that risk.
People often use "assessment," "vulnerability assessment," "penetration test," and "audit" interchangeably. They're related, but distinct:
- Vulnerability assessment — finds and ranks weaknesses across your systems
- Penetration test — attempts controlled exploitation to validate real-world exposure
- Security audit — reviews policies, procedures, evidence, and control compliance
A full network security assessment often combines all three, layered with risk analysis, configuration reviews, and ongoing monitoring. The right mix depends on your industry, compliance obligations, and the level of risk you carry today.
Why a Network Security Assessment Is Used
Business networks aren't confined to a server room anymore. They stretch across cloud services, remote workers, SaaS platforms, mobile devices, wireless access points, and third-party vendors, each one a potential entry point.

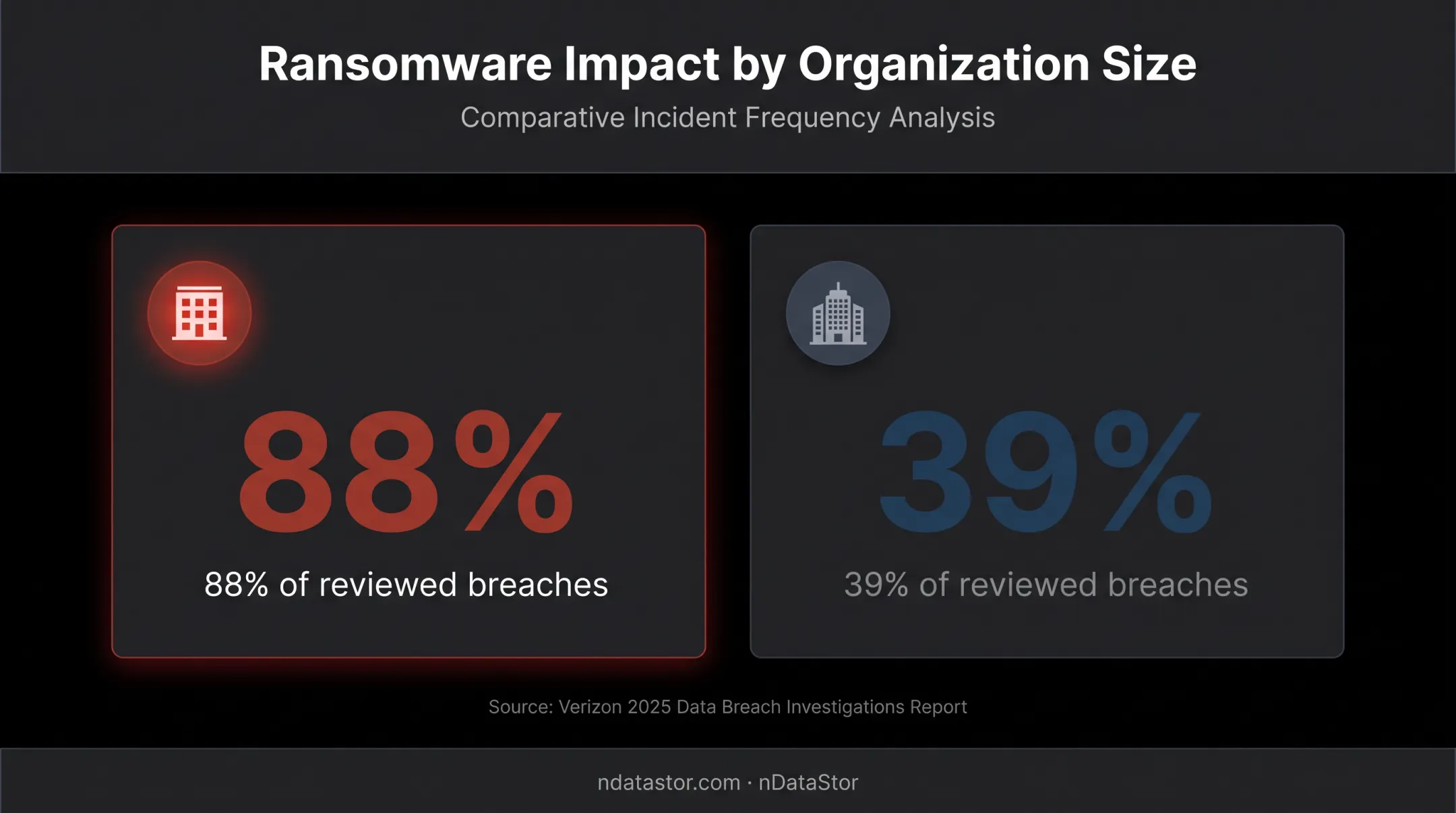

That expansion carries real consequences. Ransomware alone hit 88% of small and medium-sized businesses involved in reviewed breaches, compared to just 39% of larger organizations, according to Verizon's 2025 Data Breach Investigations Report. Smaller companies are getting hit harder, not less often.
Assessments tie directly to business goals:
- Protecting sensitive customer and financial data
- Reducing ransomware and extortion exposure
- Maintaining uptime and service availability
- Supporting compliance obligations
- Limiting costly emergency recovery and incident response
What You Miss Without One
Without a structured assessment, organizations commonly overlook:
- Unknown or forgotten assets (shadow IT)
- Open ports and exposed services
- Outdated software and missing patches
- Excessive user privileges
- Weak network segmentation
- Insecure remote access setups
- Unmonitored vendor connections
- Logging gaps that hide an attack in progress
Matching the Assessment Type to the Need
- Vulnerability assessments: broad, repeatable identification and prioritization of weaknesses
- Penetration tests: controlled validation of specific attack paths and defensive effectiveness
- Security audits or compliance assessments: review governance, documentation, and regulatory alignment
If you're regulated, map your assessment to the applicable framework (for example, HIPAA, PCI DSS, or CMMC). An assessment supports compliance; it doesn't guarantee it on its own.
Once the type is set, plan when you will run it again. Revisit your posture after a cloud migration, new vendor access, office or network expansion, a merger, a major software rollout, or a security incident, because each change can open paths the last review never covered.

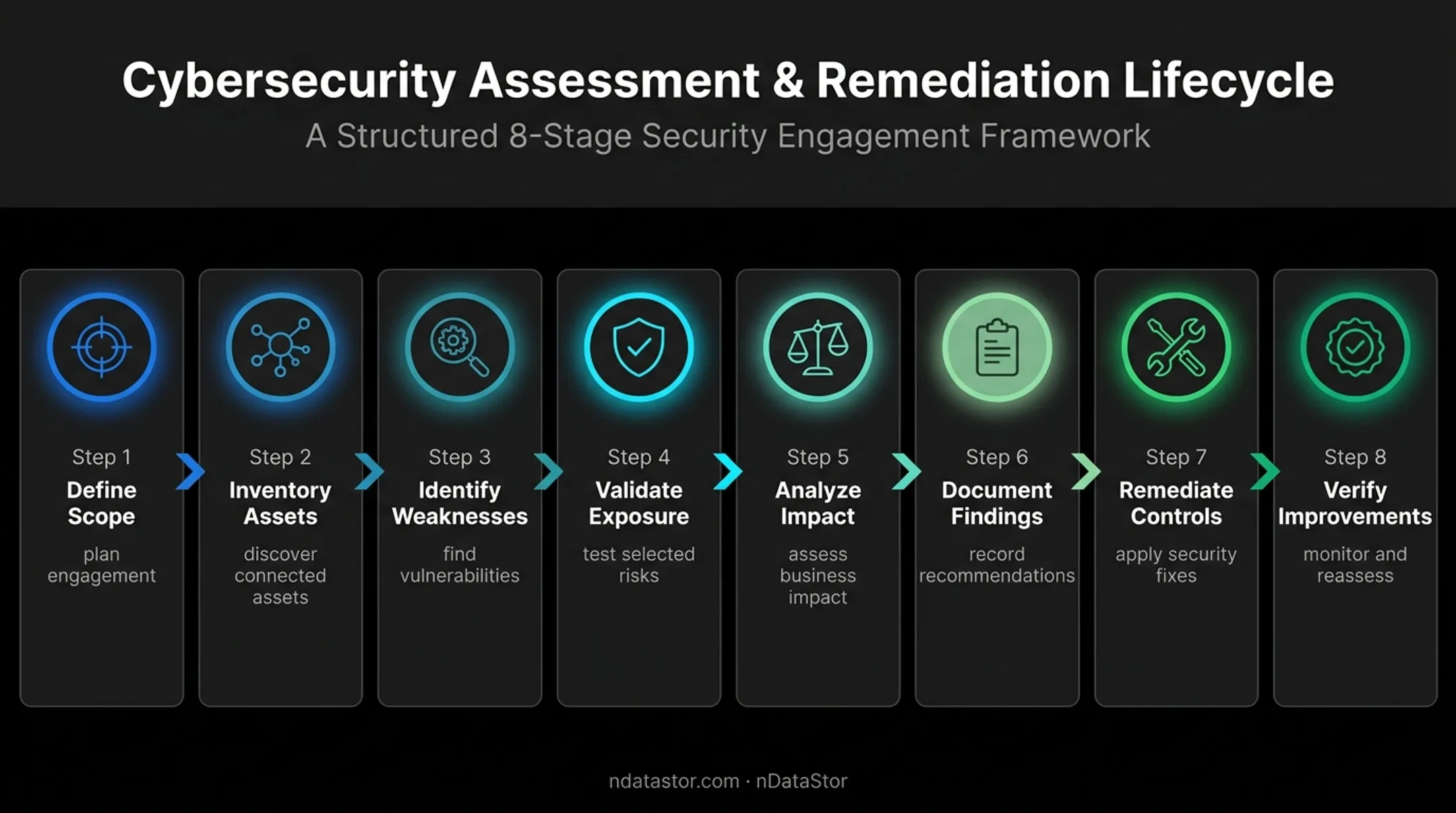

How a Network Security Assessment Works: Step-by-Step
The process moves in a logical sequence: plan the engagement, discover assets, identify weaknesses, validate selected risks, analyze business impact, document findings, remediate controls, and verify improvements. Here's how each stage plays out.
Step 1: Define the Scope and Objectives
Before any testing starts, decide what's actually in scope: internal systems, external-facing assets, cloud infrastructure, wireless networks, remote endpoints, applications, third parties, or some combination.
Document the details that will govern the engagement:
- Business goals and systems that must stay available
- Testing windows and authorized testers
- Rules of engagement and data-handling requirements
- Systems explicitly excluded from testing
Step 2: Build an Asset Inventory and Network Map
You can't secure what you don't know exists. This step catalogs servers, workstations, laptops, routers, switches, firewalls, wireless access points, IoT devices, cloud resources, applications, accounts, and remote connections.
For each asset, record:
- Ownership and business function
- Location or hosting environment
- Data handled and internet exposure
- Operating system, software version, and patch status
- Criticality to operations
Don't skip shadow IT, unmanaged endpoints, inactive accounts, or third parties with network access. Unknown assets are exactly where blind spots form.
Step 3: Identify Vulnerabilities and Configuration Weaknesses
This step uses authorized vulnerability scanning and configuration review to examine missing patches, outdated software, weak authentication, exposed services, insecure protocols, firewall rules, encryption, remote access, and endpoint protections.
Scans typically run in one of two modes, as outlined in NIST's Technical Guide to Information Security Testing and Assessment:
- Authenticated (credentialed) scanning uses administrator-level access to pull detailed vulnerability data directly from the host
- Unauthenticated (uncredentialed) scanning locates hosts through network discovery, then scans what it finds from the outside
Automated tools have a known false-positive rate, which is why scan results need expert review, not a blind checklist. This step should also cover policy and access reviews:
- Least privilege and privileged-account controls
- MFA and password requirements
- Backup protections, logging, and incident response practices
Step 4: Validate Exposure With Controlled Testing
Scanning tells you what might be wrong. Penetration testing tells you whether an attacker could actually use it against you through credential abuse, privilege escalation, insecure remote access, weak segmentation, or exploitation of a high-priority vulnerability.
Testing generally falls into three approaches:
- Black-box: testers work with no internal knowledge, mimicking an outside attacker
- White-box: testers have full access to source code and architecture
- Gray-box: testers get limited internal knowledge and combine outside and inside perspectives
Every engagement needs written authorization, defined limits, and a recovery plan. A penetration test isn't automatically required for every asset in every assessment. Its scope should reflect risk, business criticality, compliance needs, and available resources.
Step 5: Analyze, Prioritize, and Report Findings
Raw findings mean little without context. Rank each one by asset criticality, data sensitivity, exposure, exploitability, likelihood, business impact, existing controls, and relevant compliance requirements.
Every finding in the final report should include:
- Supporting evidence and affected assets
- The likely attack path
- Business consequence if left unresolved
- Recommended fix and severity rationale
- Assigned owner and target completion date
Separate the reporting into executive and technical versions. Leadership needs to understand operational and financial stakes; your IT team needs enough detail to act.
Step 6: Remediate, Retest, and Monitor
Apply the fixes that matter most:
- Patch systems and remove unnecessary services
- Tighten firewall rules and improve segmentation
- Enforce MFA and reduce excess privileges
- Update policies and strengthen backups
Then retest the high-priority items. Confirm the fix worked and didn't introduce a new operational problem. Finally, put ongoing monitoring and a reassessment schedule in place, tied to your risk level, business changes, and compliance obligations.
Key Factors, Common Issues, and Assessment Limitations
Several variables shape how useful an assessment actually is:
- Scope quality — excluded cloud accounts, remote devices, vendors, or wireless networks leave exposure unexamined
- Asset and data context — a weakness on a public-facing system or one holding regulated data often demands faster action than the same flaw elsewhere
- Testing conditions — scan credentials, maintenance windows, network size, and legacy systems affect what testers can safely verify
- Organizational readiness — incomplete documentation, unclear ownership, and limited staff capacity delay remediation
- Compliance and safety constraints — testing must respect legal authorization, privacy rules, and business continuity needs
Beyond those variables, a few misconceptions still trip teams up:
- A vulnerability scan is not a full assessment
- A high technical severity score doesn't automatically equal the highest business risk
- Passing an audit means you met a specific set of criteria at a point in time, not that you're protected from every attack
Every assessment has limits worth stating up front:
- Point-in-time visibility that can miss threats appearing after the review
- False positives or negatives that skew remediation priorities
- Scope boundaries that leave some systems untested
- Human behavior and third-party risk that often sit outside the initial review
Document these limitations and assumptions in your final report so leadership understands exactly what was and wasn't tested.

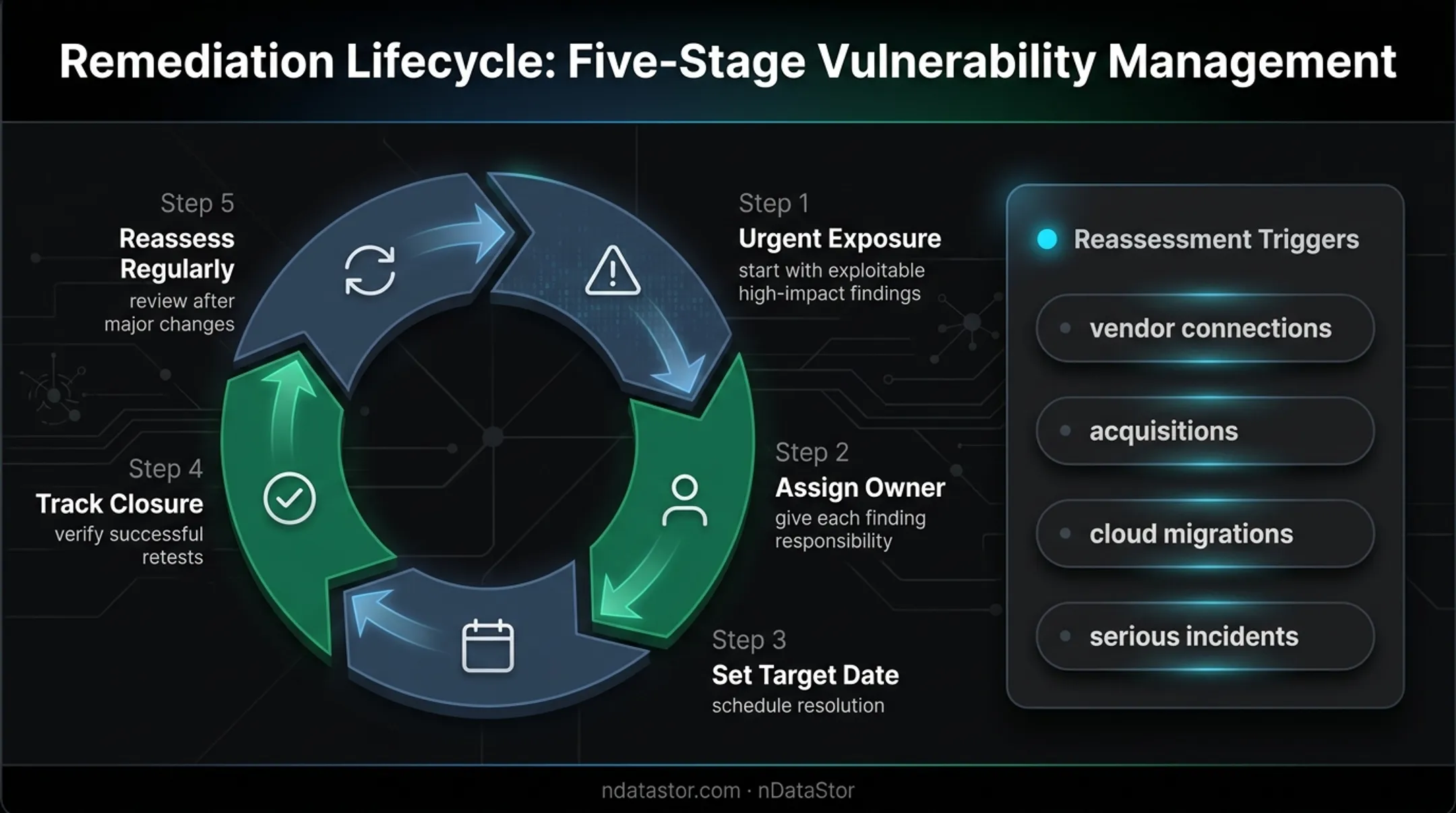

Turning Findings Into Remediation and Ongoing Protection
A report full of findings is only useful if it becomes action. Here's how to convert it into a risk-based plan:
- Address urgent exposure first — start with what's exploitable and high-impact
- Assign a responsible owner to each finding
- Set a target date for resolution
- Document exceptions when a fix isn't feasible right now
- Track progress to closure so nothing gets lost
Organize your controls into practical layers:
- Identity and access management
- Patch and configuration management
- Firewalls and network segmentation
- Endpoint protection and encryption
- Secure backups
- Logging and alerting
- Staff security awareness
- Incident response planning
Measure remediation with evidence you can actually point to:
- Resolved findings and successful retests
- Improved asset coverage
- Reduced unnecessary exposure
- Tested recovery procedures
Reassess on a recurring, risk-based schedule. Always reassess after major infrastructure changes, new vendor connections, acquisitions, cloud migrations, serious incidents, or material changes to regulated data.
Not every business has the internal staff or expertise to run this full cycle in-house. That's where a managed security partner like nDataStor fits in.
nDataStor supports assessments, proactive monitoring, ransomware defense, compliance documentation for HIPAA, PCI DSS, and CMMC, and remediation guidance for businesses across Northern California. External support should complement your internal ownership of assets, decisions, and risk acceptance, not replace it.
Conclusion
A network security assessment is a repeatable process, not a one-time event. It moves through these stages:
- Scope and asset discovery
- Testing and risk prioritization
- Remediation and validation
- Ongoing monitoring
Real value comes from turning findings into assigned, business-focused actions that get closed out.
Start with a defined scope and an accurate asset inventory. When the process exceeds your internal expertise or bandwidth, bring in qualified help. nDataStor offers a free IT security and performance assessment for businesses that want a clear, no-pressure starting point.
Frequently Asked Questions
What is a network security assessment?
A network security assessment is a structured review of network assets, vulnerabilities, configurations, controls, and business risk. Depending on scope, it may include scanning, audits, penetration testing, and a remediation plan.
What are the three main types of security assessments?
Vulnerability assessments identify and rank weaknesses. Penetration tests validate whether those weaknesses can actually be exploited. Security audits review policies, documentation, and compliance with governance requirements.
What are the 5 steps of security risk assessment?
Most approaches cover scope and asset identification, threat and vulnerability analysis, risk prioritization, control selection or remediation, and ongoing monitoring. Formal frameworks like NIST may split the same work into four or seven steps.
What does a security threat assessment consist of?
A security threat assessment covers threat identification, asset and vulnerability review, likelihood and impact analysis, relevant attack paths, existing controls, and recommended risk treatment options.
What are the six basic network security measures?
Core measures include access control with MFA, firewalls, network segmentation, and encryption. Add patch and configuration management, plus monitoring tied to backups and incident response.
How much does a cybersecurity assessment cost?
Cost depends on network size, scope, infrastructure complexity, testing depth, compliance requirements, and whether ongoing monitoring is included. Request a scoped quote rather than relying on a generic price estimate.
