Introduction
Security teams often struggle to validate defenses the way real attackers operate without burning budget on blind discovery.
Gray box penetration testing is an authorized security assessment where testers work with limited, agreed-upon knowledge of your environment, such as a low-level user account or a partial network diagram.
This guide is built for US businesses: IT decision-makers, security teams, and compliance leaders evaluating how to test networks, applications, cloud environments, APIs, or other in-scope assets.
Here's why it matters. Attackers rarely start from zero. Many already hold stolen credentials or basic reconnaissance data before they touch a single system.
Gray box testing mirrors that reality. Testers can focus on the paths a real attacker would take instead of open-ended discovery.
This article covers the process, scoping decisions, benefits, limitations, and where gray box testing fits—and where it doesn't.
Key Takeaways

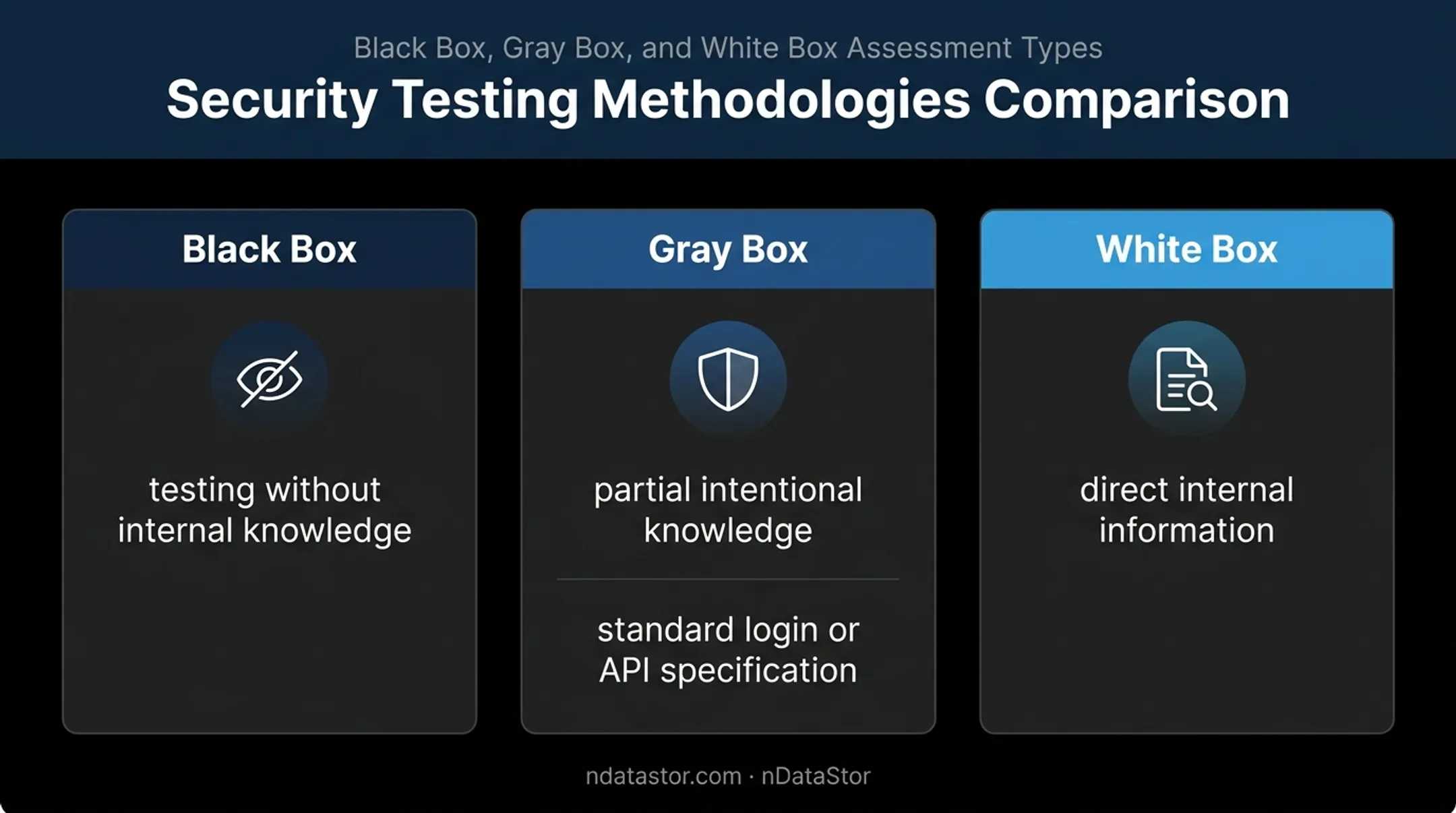

- Sits between black box (no prior info) and white box (full access) based on what testers know upfront
- Quality hinges on scope, access given, objectives, rules of engagement, and tester skill
- A test creates value only once findings get prioritized, fixed, and retested
- Complements vulnerability scanning, secure code review, and monitoring—it does not replace them
What Is Gray Box Penetration Testing?
Gray box penetration testing gives an authorized tester partial, intentional knowledge of your environment before the engagement starts. That might mean a standard-user login, an API specification, a network diagram excerpt, or a summary of application roles—enough to mirror the attacker scenario you need to validate.
NIST's SP 800-115 guidance describes this as an approach that combines white-box techniques (direct analysis of internal information) with black-box techniques (testing without that knowledge). In practice, testers spend less time on blind reconnaissance and more time validating what actually breaks.
What the Test Actually Simulates
Gray box engagements typically model one of three attacker profiles:
- A user with limited privileges trying to reach data or functions they shouldn't have access to
- An attacker who has already obtained valid credentials, through phishing, a prior breach, or password reuse
- An external threat actor who's finished reconnaissance and is now probing for a way in
Gray Box vs. Vulnerability Scanning vs. Security Audit
These three terms are not interchangeable:
- Vulnerability scan – automated tools flag known configuration weaknesses; nothing gets exploited
- Security audit – an independent review of policies, records, and controls for compliance, not an attack simulation
- Gray box penetration test – a human tester attempts controlled exploitation using the partial knowledge provided, then documents what a real attacker could do with it
"Gray box" describes the information model, not the asset type. You can run a gray box test against web applications, APIs, mobile apps, internal or external networks, cloud services, or specific user roles.
Why Do Organizations Use Gray Box Testing?
Organizations reach for gray box testing when a fully blind external test won't dig deep enough, but full white box access isn't practical or necessary. It's a middle path, not automatically the cheapest or fastest option, but often the one that best matches a specific risk question.
Credential misuse makes this especially relevant. Verizon's 2025 Data Breach Investigations Report found that stolen credentials showed up in 33% of breaches at small and midsize businesses. That's nearly a third of incidents that begin with something a gray box test can simulate directly: an attacker already inside with valid, low-level access.
Common Use Cases
- Verify what logged-in users can and can't do in applications
- Confirm whether role separation holds under privileged access
- Test partner and vendor integrations for introduced risk
- Validate configurations across cloud and hybrid infrastructure
- Catch exposure created by frequent product releases
- Model what a compromised or disgruntled employee could reach
Gray box testing also supports risk management and compliance work. nDataStor's compliance-focused testing helps organizations verify controls and document security posture for auditors under frameworks like PCI-DSS, HIPAA, and CMMC. Keep in mind that the applicable framework or your assessor determines the exact testing requirement, not the methodology itself.
How Does Gray Box Penetration Testing Work?

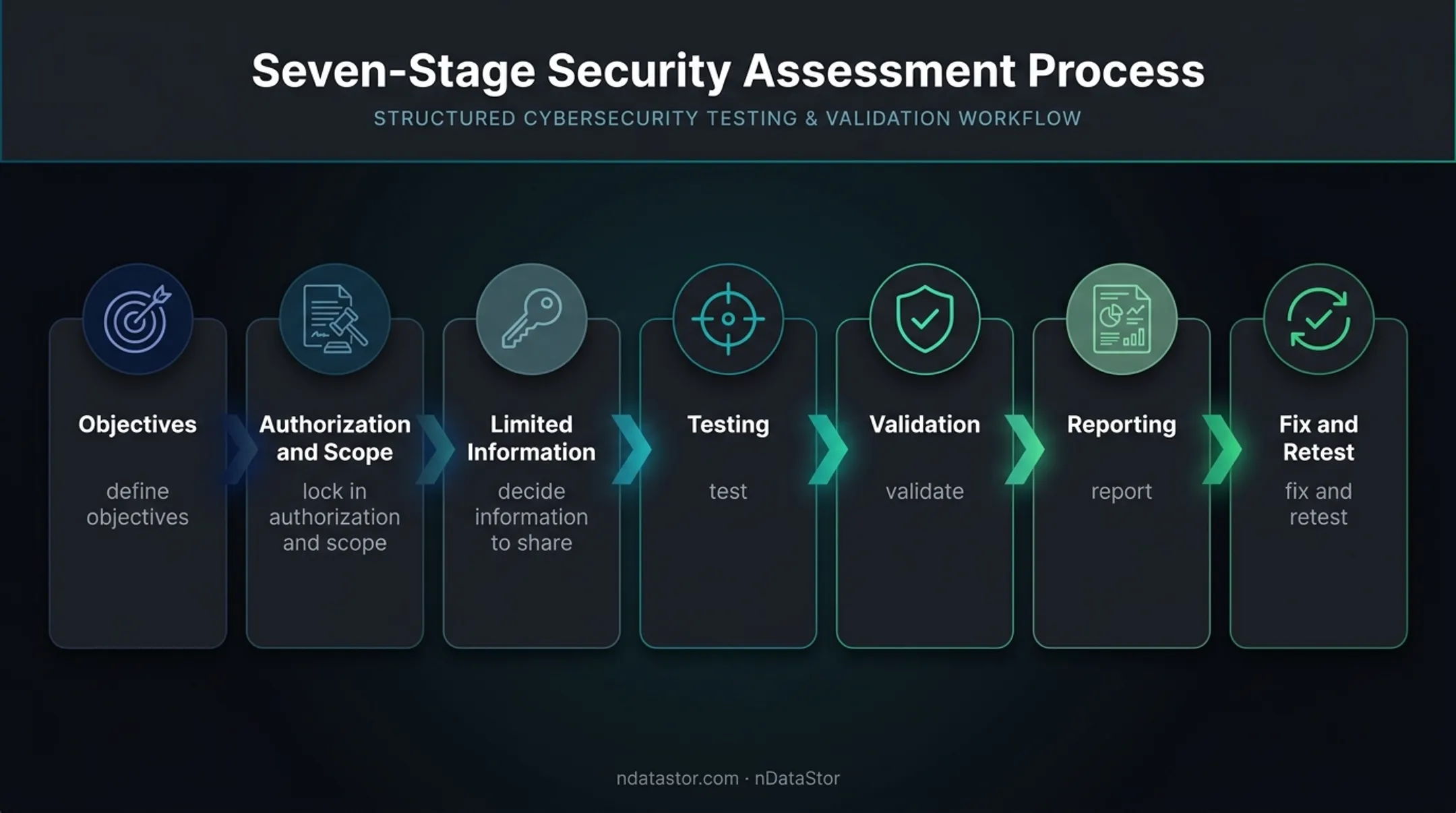

Every credible gray box engagement follows a similar arc: define objectives, lock in authorization and scope, decide what limited information to hand over, test, validate, report, fix, and retest.
Planning and Scoping
Before any testing starts, this stage should nail down:
- In-scope assets and attack scenarios
- User roles and test accounts to be used
- Testing windows and production safeguards
- Exclusions and data-handling requirements
- Emergency contacts and success criteria
nDataStor typically coordinates this closely with client teams, scheduling active testing during low-traffic periods so day-to-day operations aren't disrupted.
Deciding What Information to Share
The partial knowledge handed to testers should reflect the scenario you're trying to simulate. Worried about a compromised employee account? Give testers that employee's access level, not admin credentials or full source code. Worried about a customer-facing app? Hand over what a customer would realistically have.
Controlled Testing
With scope and access set, testers move through:
- Reconnaissance specific to the provided access level
- Authentication and authorization checks
- Input validation and business-logic testing
- Configuration review
- Privilege escalation attempts
- Validation of chained attack paths
Throughout, testers monitor system impact and stay in contact with internal teams to prevent outages, data loss, or service disruption.
Reporting, Remediation, and Retesting
Findings get verified, not just listed. A solid report typically covers:
- Affected assets and supporting evidence
- Likelihood, business impact, and severity
- Remediation recommendations
- Limitations in what the test covered
Remediation and retesting close the loop. nDataStor helps confirm fixes address the original weakness without introducing regressions or new exposure. Automated tools can support discovery and validation, but business logic, chained vulnerabilities, and real-world impact still need manual analysis.
Key Factors That Affect Gray Box Testing and Where It Is Applied
Gray box methodology applies across a wide range of environments:
- Internet-facing infrastructure and internal networks
- Web applications and APIs
- Mobile applications
- Cloud services
- Identity systems
- Wireless environments
- Third-party connections
What Shapes Coverage and Depth

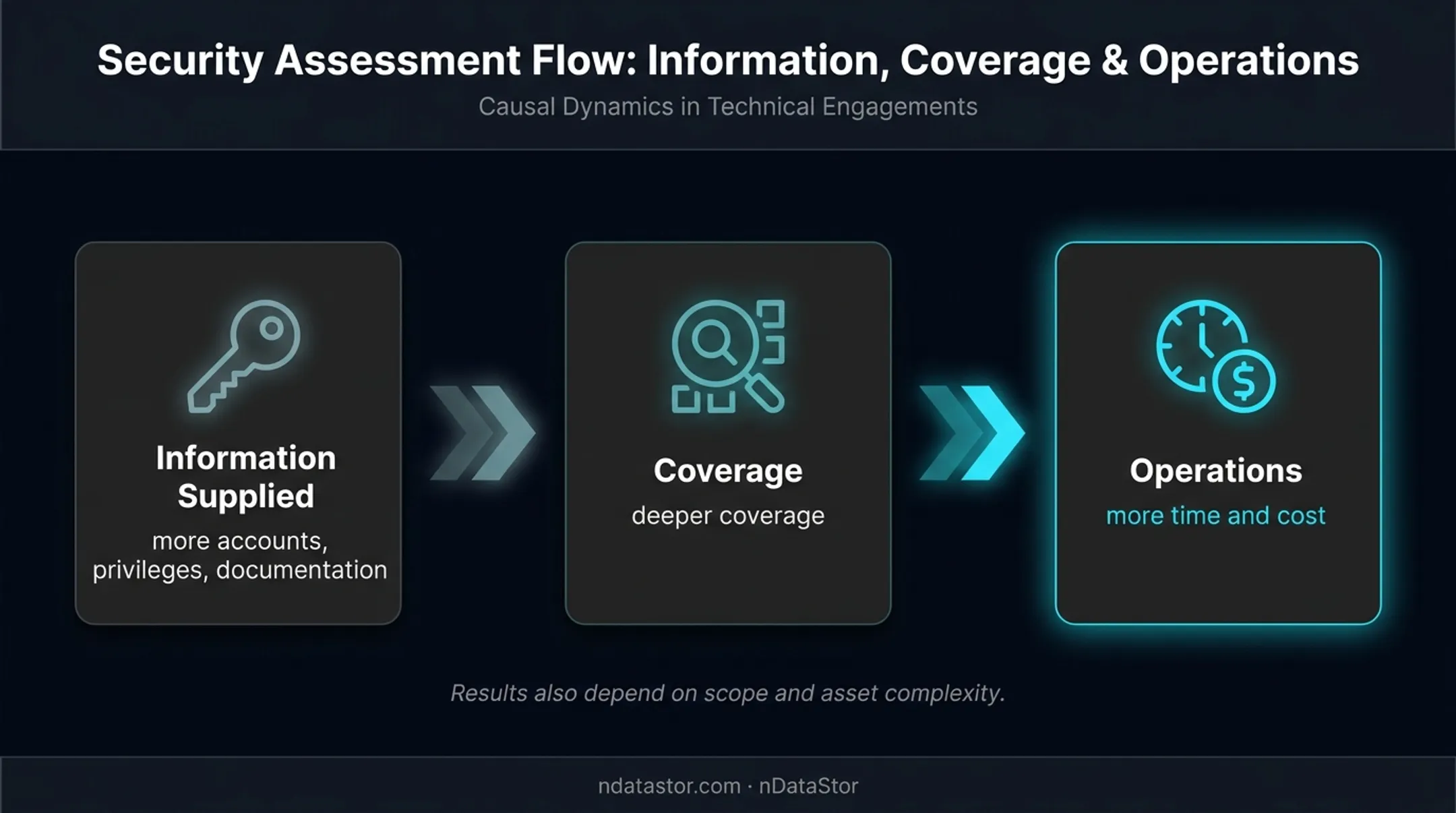

The information you supply directly affects what a test can find. More accounts, broader privilege levels, and better architecture or API documentation generally translate into deeper coverage, but also more time and cost. These operational factors also shape how reliable the results will be:
- Scope and asset complexity
- Rate limits and testing windows
- Production restrictions
- Available monitoring
Business and regulatory constraints matter too. Sensitive data handling, privacy obligations, sector-specific requirements, evidence retention, and keeping testing separate from live customer activity all need to be settled during scoping, not discovered mid-engagement.
How Often Should You Test?
There's no single universal schedule, but industry guidance points to a clear baseline. CREST recommends testing critical systems at least yearly and after any major change. Frameworks like CMMC set similar annual expectations for regulated environments.
Beyond the calendar, retest after:
- Major infrastructure or application changes
- Significant access-model changes
- Mergers or acquisitions
- New product launches
- A material security incident
Questions to Ask Before You Scope a Test
- Which assets are most critical to the business if compromised?
- What attacker scenario matters most right now?
- What information will the tester actually receive?
- How will remediation get tracked once findings come in?
Common Issues, Misconceptions, and When Gray Box Testing May Not Be Appropriate
Misconceptions Worth Correcting
Gray box testing doesn't guarantee complete coverage. Partial knowledge sharpens focus, but weaknesses outside the agreed scope can still go unnoticed.
A clean report doesn't prove your environment is secure either. It only reflects the assets, time window, information, and techniques used in that engagement.
Where Scoping Goes Wrong
Common failures include:
- Vague objectives that don't define what decisions the test should support
- Excessive exclusions that leave real risk untested
- Stale credentials or missing test environments
- Uncoordinated third-party dependencies
- No plan for remediation or retesting
When a Different Approach Fits Better
Choose a different method when your goal doesn't match what gray box is built to deliver:
- Black box testing – better for a purely external-attacker perspective
- White box testing – better for maximum code or architecture coverage
- Vulnerability scanning – better for broad, recurring, automated discovery
- Red teaming – better when the goal is testing detection and response, not only finding weaknesses
Gray box testing is also the wrong fit when an organization:
- Can't provide written authorization
- Can't protect sensitive data during testing
- Has no agreed testing window
- Hasn't decided what the results should inform
Vetting a Provider
Before signing a contract, verify:
- Real-world experience with your industry and asset types
- Sample reporting quality, not just a sales pitch
- A clear communication process during testing
- Data-handling practices and contractual or insurance protections
- Willingness to support remediation, not just deliver a PDF and disappear
If you're a small or midsize business figuring out where testing fits into a broader security plan, nDataStor has that conversation regularly with clients across Northern California.
We help align monitoring, ransomware defense, compliance support, and assessment strategy with your actual risk—not a generic checklist.
Conclusion
Gray box penetration testing works because it mirrors reality: attackers rarely start with zero knowledge, and testers who mimic that middle ground can validate real, exploitable risk instead of chasing every theoretical possibility.
The right methodology still depends on your objectives, threat model, in-scope assets, compliance requirements, available resources, and how much operational risk you can accept during testing.
None of that delivers value without the fundamentals in place:
- Written authorization before testing begins
- Careful scoping of assets and boundaries
- Controlled execution that limits operational risk
- An actionable report your team can work from
- Remediation followed by retesting to confirm fixes
The model gets the attention, but that discipline determines whether the engagement actually reduces risk. Treat gray box as a decision framework, then hold the engagement to those fundamentals from kickoff through retest.
Frequently Asked Questions
What is gray box testing in software testing?
Gray box software testing combines partial knowledge of internal design or code with external functional testing to check how a system behaves. It's different from cybersecurity penetration testing, which focuses specifically on exploitability and real-world security risk.
What are the three types of penetration testing?
Black box, gray box, and white box testing differ in how much information the tester receives before starting. Black box means little to no prior knowledge, gray box means limited agreed information, and white box means full access to source code and architecture.
What is the difference between black box and gray box testing?
Black box testing gives testers no or minimal prior knowledge, forcing reliance on external reconnaissance. Gray box testing provides limited, intentionally selected information, letting testers skip some discovery and focus on specific attack paths.
What's the difference between white box and gray box testing?
White box testers receive extensive internal information, including source code, architecture diagrams, and configurations. Gray box testers receive only selected information, making white box broader in visibility and gray box more scenario-focused.
What is the difference between black box and white box penetration testing?
Black box testing simulates an external attacker with no internal information, relying entirely on reconnaissance and exploitation. White box testing is a deeper assessment supported by extensive architecture, configuration, credential, or source-code access.
What is a black box penetration test?
A black box penetration test is an authorized assessment performed with little or no prior knowledge of the target environment. It's designed to model how an external attacker would discover and exploit weaknesses from scratch.
