Network segmentation penetration testing is an authorized security assessment that checks whether those boundaries actually hold. Testers attempt to move from a lower-trust segment, such as a guest network or employee workstation zone, into a restricted environment like a payment system or server room. The goal isn't to find every vulnerability. It's to answer one specific question: can an attacker cross a boundary that was supposed to stop them?
This article covers how segmentation works, what testers examine, how this differs from a broader penetration test, compliance expectations, and how to prepare for one.
Key Takeaways
- Segmentation testing verifies that firewall rules, VLANs, and access controls work in practice, not just on a diagram.
- Prevents unauthorized connectivity and stops lateral movement after a breach.
- Narrower than a full network penetration test, but still requires defined scope and written authorization.
- Every confirmed weakness needs documented remediation and a retest to confirm the fix worked.
What Is Network Segmentation Penetration Testing?
Network segmentation means dividing a network into separate security zones, then controlling exactly what traffic is allowed to pass between them. A segmentation penetration test validates whether those controls hold up under real conditions.
Picture a small business with four zones: guest Wi-Fi, employee workstations, an internal file server, and a payment-processing segment. On paper, guest devices should never reach the payment segment. A tester's job is to sit on the guest network and actually try to reach it, using the same techniques an attacker might use.
The security objective is straightforward: a compromise in a low-trust zone should never enable access into a high-trust zone. If a guest laptop gets infected with malware, that infection shouldn't be able to reach financial records or patient data three hops away.
How This Differs From Other Assessments
Teams often confuse segmentation testing with related assessments. Here's the distinction:
| Assessment Type | Primary Focus | What It Doesn't Prove |
|---|---|---|
| Vulnerability scanning | Automated identification of known weaknesses in software and services | Whether one zone can actually reach another |
| Segmentation penetration test | Whether boundary controls block unauthorized cross-zone paths | Full exploitation of every vulnerability inside a segment |
| Full internal penetration test | Broader privilege escalation, exploitation, and system compromise across the network | That every documented segmentation boundary was individually tested |
Scanning finds known weaknesses; it does not prove a protected zone is unreachable. A full internal test may chase privilege escalation across the environment and still skip the specific boundary controls that matter for compliance and containment.
What the test cannot prove: a passing result doesn't mean the organization is safe from phishing, stolen credentials, or malware inside an approved segment. It only confirms that the boundary itself held.
Why Network Segmentation Testing Matters
Segmentation limits how far an attacker can travel once they're inside. If a workstation gets compromised through a phishing email, proper segmentation should stop that attacker from reaching payment systems, patient records, or production servers on the same network.
This matters for organizations protecting:
- Payment card environments
- Healthcare records and patient data
- Legal case files and privileged communications
- Financial account information
- Intellectual property and product designs
- Production and manufacturing systems
- Administrative and management interfaces
Smaller, well-defined zones also make day-to-day security easier:
- Monitoring tools generate fewer false positives when traffic patterns are predictable
- Access policies become clearer when each zone has a specific purpose
- Incident responders can isolate an affected segment instead of shutting down the whole network
Compliance Considerations
For organizations handling cardholder data, segmentation testing isn't optional. Under PCI DSS v4.0.1, if you use segmentation to isolate the cardholder data environment, you must test those methods and controls at least every 12 months—and again after any change to the controls. Service providers face a tighter cadence for related external testing requirements.
Healthcare organizations under HIPAA, government contractors under CMMC, and financial institutions under various frameworks each carry their own expectations. Check your applicable framework directly rather than assuming one standard covers everything.
Beyond compliance, dwell time still favors the defender who segments well. Mandiant's 2024 M-Trends report found that the global median attacker dwell time dropped to 10 days in 2023, down from 16 days in 2022. Shorter windows cut lateral-movement opportunity—but tighter segmentation limits where attackers can go even inside that window.

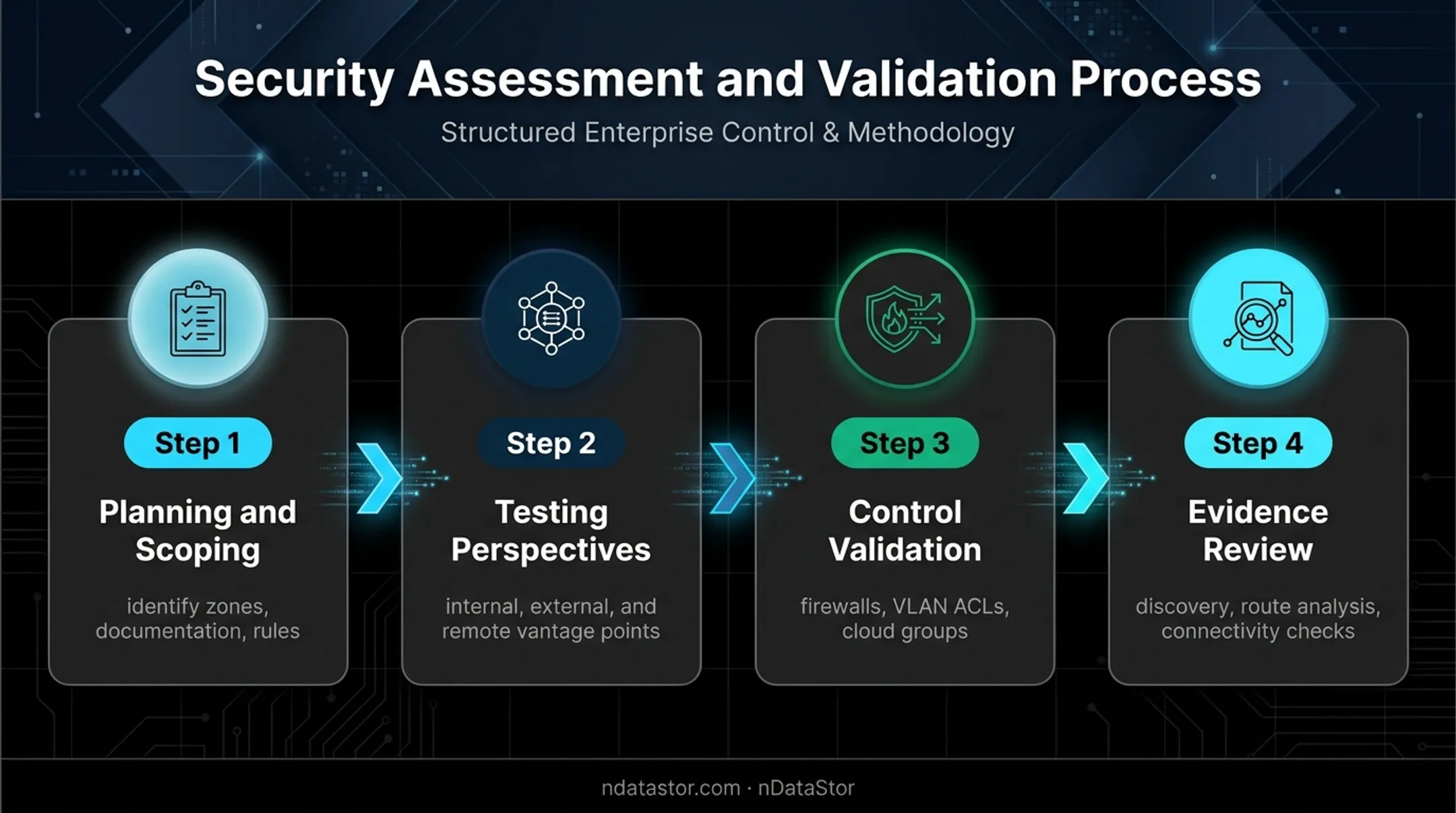

How Does a Network Segmentation Penetration Test Work?
Planning and Scoping
Before any testing begins, the assessor and the organization agree on exactly what's in scope:
- Identify segments — which zones are protected, which are lower-trust source points
- Gather documentation — network diagrams, IP ranges, VLAN/subnet lists, firewall and ACL rules, routing tables, cloud connectivity, VPN and third-party access paths
- Set rules of engagement — testing windows, authorized source locations, exclusions, and emergency contacts
- Map expected paths — what should be blocked, what's permitted for business reasons, and where shared services might create indirect access
Testing Perspectives and Techniques
Testers typically operate from multiple vantage points depending on scope:
- Internal segments such as workstations, guest Wi-Fi, contractor networks, development environments, and management zones
- External or remote perspectives when the segmentation design requires it
They also validate the segmentation controls in use, including physical separation, firewall rules, VLAN ACLs, software-defined networking, cloud security groups, host firewalls, and micro-segmentation.
Common techniques include host discovery, route analysis, controlled connectivity checks against specific ports and services, and targeted attempts to reach authorized test systems. Tools like Nmap help map hosts and services, but the tool itself doesn't interpret results, validate scope, or write findings. That work still requires a skilled tester reviewing evidence line by line.
At nDataStor, testers tailor each engagement to the client's industry, compliance obligations, and network architecture instead of following a generic checklist.
Work is coordinated with client teams and scheduled during low-traffic windows so production systems stay stable. A segmentation test that knocks over a live payment system defeats its own purpose.
What Does the Test Cover and What Happens Afterward?
Common Weaknesses Testers Look For
Segmentation failures rarely come from dramatic exploits. They usually come from small oversights that accumulate:
- Overly broad firewall or ACL rules left over from earlier network changes
- Forgotten legacy rules that were never removed
- Incorrect routing that inadvertently bridges two zones
- Undocumented shared services (backup systems, monitoring tools, identity servers) connecting segments unintentionally
- Misconfigured cloud security groups or VPN routes that grant broader access than intended
- Exposed management interfaces reachable from unexpected zones
A meaningful result answers one question clearly: could the tester discover, connect to, or authenticate against an in-scope target from an unauthorized segment? If yes, that's a confirmed finding, not a theoretical risk.
Report Contents
A solid report separates fact from assumption. It should include:
- Scope, testing dates, and tester perspective
- Segments assessed and methods used
- Observed routes with supporting evidence
- Confirmed access, filtered or inconclusive results, and permitted business traffic—each labeled clearly
- Risk ratings and specific remediation recommendations
Remediation and Retesting
Once a path is confirmed, fix the specific control that created it, whether that's a firewall rule, a route, a cloud policy, or a third-party connection. Then retest that path and related paths to confirm the fix actually worked and didn't introduce a new gap elsewhere.
Beyond the immediate fix, fold findings into ongoing improvements:
- Update network diagrams
- Tighten access reviews
- Strengthen change management procedures
- Refine scope for the next test cycle
When Should an Organization Perform the Test?
Testing frequency depends on your regulatory obligations, contractual requirements, network complexity, and how often your infrastructure changes.

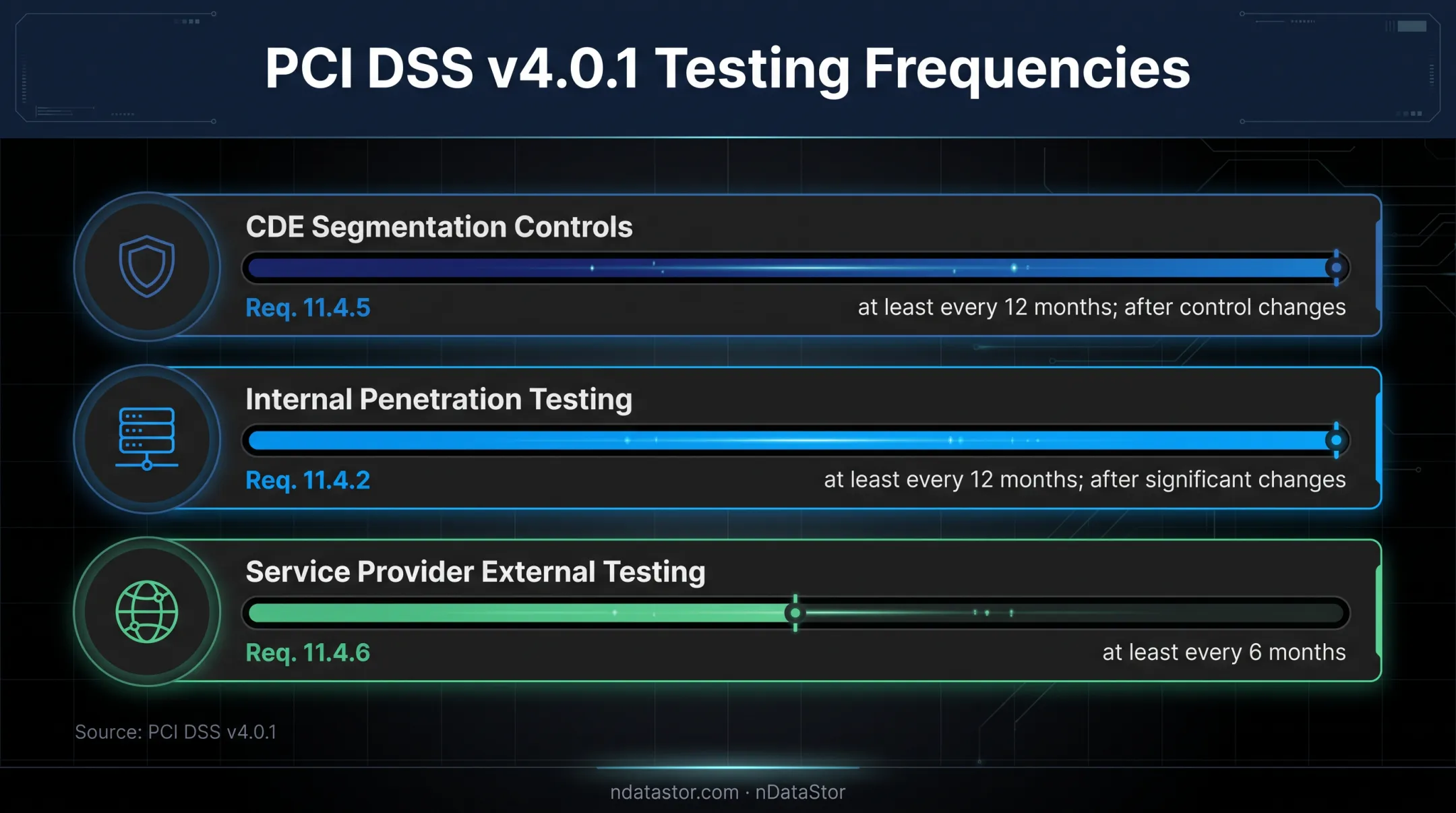

For organizations under PCI DSS v4.0.1, the requirements are specific:
| Requirement | Frequency |
|---|---|
| Segmentation controls isolating the Cardholder Data Environment (CDE) (Req. 11.4.5) | At least every 12 months, and after any change to those controls |
| Internal penetration testing (Req. 11.4.2) | At least every 12 months, and after significant internal network changes |
| Service provider external testing (Req. 11.4.6) | At least every 6 months |
Beyond compliance calendars, certain events should trigger a retest regardless of schedule:
- New VLANs, subnets, or firewall replacements
- Cloud migrations or new VPC/VNet deployments
- Mergers or major routing changes
- New remote-access services or third-party integrations
- Changes to how sensitive data flows through the network
- Ransomware incidents or other major security events
nDataStor treats these trigger events as natural testing checkpoints rather than dates to wait out on an annual calendar.
Aligning segmentation tests with vulnerability management cycles, firewall rule reviews, and annual risk assessments—plus regulatory reviews when they come up—keeps the program ahead of change instead of chasing it.
How to Prepare for a Network Segmentation Test
Before the test starts, confirm:
- Written authorization, objectives, and named contacts
- Testing windows and emergency stop procedures
- Systems explicitly excluded from testing
- Current network diagrams, asset inventories, IP ranges, and segmentation rules
- Cloud configurations, VPN details, and prior test findings
- Which business-critical communication paths are intentionally permitted
Choosing an Assessor
Look for a provider with real experience in internal network testing and the segmentation technologies you use. Cloud environments and your compliance framework matter too. Ask direct questions:
- Can they test from both internal and external perspectives?
- Do they explain limitations honestly, rather than promising absolute security?
- How do they handle evidence storage and secure transfer?
Technical skill is only part of the picture. Strong preparation work before test day reduces scope disputes and incomplete findings.
nDataStor supports organizations across Northern California with the groundwork that makes a segmentation test worthwhile, including proactive 24/7 monitoring, compliance support for HIPAA, PCI-DSS, and CMMC, and infrastructure assessments that catch documentation gaps before a tester arrives.
A short pre-test review, confirming your diagrams actually match your live network, saves time and prevents scope disputes once testing begins.
Frequently Asked Questions
What are the 7 stages of penetration testing?
PTES names seven stages: pre-engagement, intelligence gathering, threat modeling, vulnerability analysis, exploitation, post-exploitation, and reporting. Segmentation testing usually narrows that to scoping, discovery, boundary validation, reporting, and retesting.
How difficult is penetration testing?
It depends on network complexity, segmentation technologies, documentation quality, and how carefully testers must avoid disrupting production. Technical skill matters, but authorization and scoping matter just as much.
What is network segmentation?
Network segmentation is the practice of dividing a network into separate zones and controlling communication between them based on trust level, function, data sensitivity, or business need.
What are the NIST guidelines for network segmentation?
NIST SP 800-53 addresses boundary protection and least privilege access, while NIST's cybersecurity glossary describes segmentation as splitting a network into firewall-protected sub-networks that limit how far malware can spread.
Is network segmentation testing the same as a full penetration test?
No. Segmentation testing focuses specifically on whether defined network boundaries block unauthorized paths. A full penetration test typically covers a much wider range of vulnerabilities and attack objectives.
When should network segmentation penetration testing be performed?
Timing should follow your applicable compliance requirements, your risk profile, and any major changes to your segmentation controls. Verify current regulatory requirements for your specific industry before setting a schedule.
